DC Centrifugal Blower MBD Series

MBD10-24

Stampa tutte le informazioni sul prodotto in una volta sola
MBD10-24

Fan

Classificazione prodotto Nome del prodotto Prezzo di listino Data di spedizione
Fan MBD10-24 92.00 € Up to 20 pcs Estimated Ship 5weeks
• We provide a set product of the necessary peripheral equipment packed together with the fan.
(with Finger Guard: T-MBD10-24-GA / with Filter: T-MBD10-24-FA)
Notice: The shipping date refers to the time of dispatch from the warehouse in Düsseldorf/Germany. Shipments with 30 pieces or more will require air freight.

Incluso

  • Centrifugal Blower, Operating Manual

Specifiche

Caratteristiche

Characteristics Diagram

Characteristics Diagram

Dimensioni

Dimensions (Body)

Dimensions (Body)

Exhaust Outlet and Intake Side Dimensions

Exhaust Outlet and Intake Side Dimensions

Scarica i dati

Altre Specifiche

General Specifications

Item Specifications
Insulation Resistance After continuous operation at normal ambient temperature and humidity, the measurement value between the windings and the case is 100 MΩ min. using a 500 VDC megger.
(MBD Series: 250 VDC megger, 10 MΩ min. However, 500 VDC megger, 10 MΩ min. for MBD□-48, 48S, MBD□-24A and 24S)
Dielectric Strength No abnormality is observed even with an application of 1.5 kVAC at 50 Hz between the windings and the case for 1 minute after continuous operation, at normal ambient temperature and humidity.
(MBD Series: 50 Hz, 500 VAC, for 1 minute)
Temperature Rise After continuous operation at normal ambient temperature and humidity, when the temperature becomes constant, the value measured on the surface of the motor case using the thermometer method is as follows.
MBS Series: 60 °C max., MB Series: 45 °C max. MBD Series: 15 °C max.
Operating Voltage Range MBS, MB Series: ±10 % (for each voltage) MBD Series: ±10 % of rated voltage
Thermal Class MBS Series, MB1665: 130 (B)
MB Series (Excluding MB1665): UL/CSA Standards: 105 (A), EN Standards: 120 (E)
MBD Series: 120 (E)
Overheat Protection Built-in Thermal Protector (Automatic Return Type)
MBS Series, MB1665: Open: 130±5 °C, Reset: 85±20 °C
MB840, MB1040, MB1255: Open: 120±5 °C, Reset: 76±20 °C
Impedance Protected: MB520, MB630
Built-in burnout prevention circuit: MBD Series
Operating Ambient Temperature MBS Series, MB520, MB630 type, MBD Series: -10~+60 °C
MB840, MB1040, MB1255, MB1665 type: -10~+50 °C MB10V-B: -10~+40 °C
Operating Ambient Humidity 85 % max. (non-condensing)
Painting Color Dark gray
Materials Motor Case: Aluminum die cast Casing: Aluminum die cast Impeller: Aluminum

Standard

Hazardous Substances

The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).

For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.

Configurazione del sistema

System Configuration

Prodotti correlati

Thermostat for Fan

Products Features
AM2-XA1
AM2-XA1
Features

Automatically operates and stops fans in response to temperature changes in the equipment.
This helps improve the equipment's "environmental" performance in terms of energy savings, noise reduction, etc.

  • Setting temperature range 0~+60 °C (setting error ±5 °C)
  • Easy to set temperature with thumbwheel dial
  • Designed for optimal air flow circulation, enabling stable operation
  • Compact size
    Width 33 mm × Height 70 mm × Depth 42.5 mm
  • *For the number of applicable cooling fans that can be used, click here.

Note

  • Cannot be used with three-phase type fans.

Fan Kit Product (Centrifugal Blower)

Products Features

Fan Kit Product

Fan Kit Product | Set
The photo is a typical example.

 Features

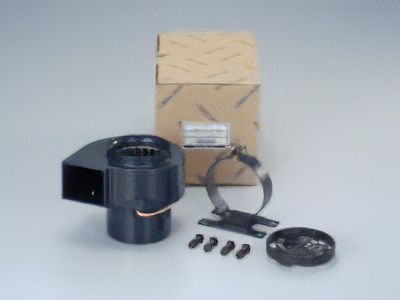

This set includes finger guards, plug cords, mounting screws, and other accessories necessary for use.

Set Contents
(Set contents vary depending on the product)

  • Centrifugal blower
  • Finger guard or filter
  • Mounting Brackets
  • Mounting screw
Centrifugal blower, finger guard or filter, mounting bracket, mounting screws
The illustration is a typical example.
