Product Customisation - Special Order Support -

This section provides information about special orders for those searching for custom Oriental Motor products.

What Is Product Customisation (Special Order Support) for Oriental Motor?

Standard products can be modified in consultation with the customer.
These special products are technically specified and have a minimum order quantity. Some possible modifications are described below.

Special Order Support

Special Order Support
Services Available
  • Individual customisation for each customer
  • We will ask about the issue/content and quantity, and confirm the technical feasibility
Applicable Content Processing of windings, shafts, cables, etc.
Order Quantity Based on the premise of mass production
Customisation Examples
 		 Click here for examples of customisation for "Special Order Support"

For more information or technical consultation, please contact your nearest Branch or Sales Office.

Examples of Product Customisation With “Special Order Support”

Customisation is available for shafts, cases, windings, cables, etc.
Below are examples of customisation. Please feel free to contact us for any customisation that is not listed here.

Examples of Customizable Parts

Applicable Products

Stepper motors, Servo motors, Brushless motors, Electric actuators, AC motors, Cooling fans, Cables, etc.
Please contact Oriental Motor for details.

Processing Example: Shaft

The shaft shape can be modified to match the item to be mounted on the shaft end.

Example) Shaft diameter modify, tip pin hole processing, tip screw hole processing, shaft length modify, etc.

Example of Shaft Shape Customisation

Processing Example: Motor Case

Additional processing can be performed on the motor case if the motor mounting method needs to be modified or if a sensor needs to be mounted on the motor.

Example) When screw insertion direction relative to the mounting surface is restricted
Mounting holes in the motor case flange modify from tapped holes to through holes, allowing mounting screws to be inserted from the rear of the motor, etc.

Example of Motor Case Customisation

Processing Example: Motor Windings

In stepper motors, the number of windings and wire diameter specifications can be modified to match the required specifications for speed–torque characteristics.

Example) Winding specifications modify to secure torque at high speeds, etc.

Example of Characteristics When Winding Processing Is Customized

Processing Example: Cable

Motor lead wires and cables can be processed to suit the design and manufacturing requirements of the customer equipment.

Example) Assemble the specified connector at the end of the lead wires, bind the lead wires, etc.

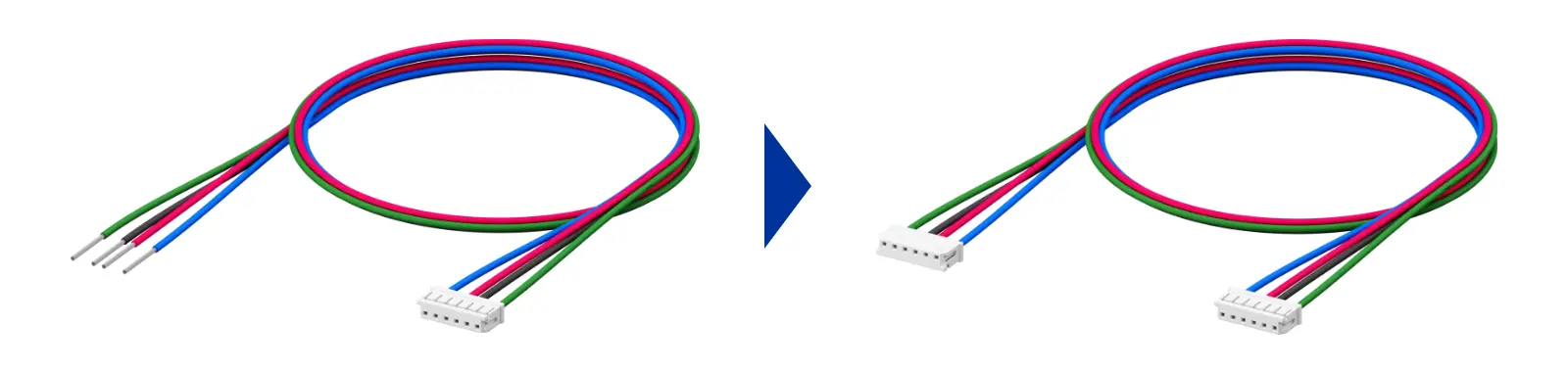

Example of Cable Shape Processing
-->
