Servo Motors Battery-Free Built-In Absolute Encoder AZX Series

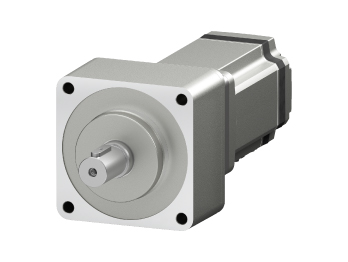

AZXM1260AC-PS10
Motor
| Classificazione prodotto | Nome del prodotto | Prezzo di listino | Data di spedizione |
|---|---|---|---|
| Motor | AZXM1260AC-PS10 | 1,818.00 € | Prodotto da interrompere (scadenza ordine 29.1.2027) |
- *Per l'acquisto di questo prodotto, contatta Oriental Motor.
- *La scadenza per gli ordini dei prodotti fuori produzione è 31.3.2027.
Incluso
- Motor: Parallel Key
Specifiche
Caratteristiche
Speed - Torque Characteristics
Dimensioni
Motor
Connection Cable for Motor (When Selected)
Flexible Connection Cable for Motor (When Selected)
Connection Cables for Encoder/ Length: 5m or less (When Selected)
Connection Cables for Encoder/ Length: 7m or more (When Selected)
Flexible Connection Cables for Encoder/ Length: 5m or less (When Selected)
Flexible Connection Cables for Encoder/ Length: 7m or more (When Selected)
Scarica i dati
Altre Specifiche
Motor General Specifications
| Item | Specifications | |
|---|---|---|
| Operating Environment (When operating) |
Ambient Temperature | 0~+40 °C (Non-freezing)*1 |
| Ambient Humidity | 85 % max. (Non-condensing) | |
| Atmosphere | No corrosive gases or dust. No exposure to water, oil or other liquids. | |
| Shaft Runout | 0.05 T.I.R. (mm)*2 | |
| Concentricity of Installation Pilot to the Shaft | 0.075 T.I.R. (mm)*2 | |
| Perpendicularity of Installation Surface to the Shaft | 0.075 T.I.R. (mm)*2 | |
- *1
- According to Oriental Motor’s measurement conditions
- *2
- T.I.R. (Total Indicator Reading): The total dial gauge reading when the measurement section is rotated once around the reference axis center.
Permissible Radial Load and Permissible Axial Load
| Type | Motor Frame Size | Product Name | Gear Ratio | Permissible Radial Load | Permissible Axial Load | ||||
|---|---|---|---|---|---|---|---|---|---|
| Distance from Shaft End [mm] | |||||||||
| 0 | 5 | 10 | 15 | 20 | |||||
| Standard Type | 60 mm | AZXM640 | － | 230 | 245 | 262 | 281 | 304 | 98 |
| 85 mm | AZXM960 | － | 376 | 392 | 408 | 426 | 446 | 147 | |
| PS geared type | 90 mm | AZXM940 | 5 | 380 | 420 | 470 | 540 | 630 | 600 |
| 10 | 480 | 530 | 590 | 680 | 790 | ||||
| 25 | 650 | 720 | 810 | 920 | 1070 | ||||
| AZXM960 | 5 | 380 | 420 | 470 | 540 | 630 | 600 | ||
| 120mm | AZXM1260 | 10 | 970 | 1040 | 1130 | 1230 | 1350 | 1200 | |
| 25 | 1320 | 1420 | 1530 | 1670 | 1830 | ||||
- *The product names are listed such that the product names are distinguishable.
- *PS geared type: The allowable value is the value that satisfies 10,000 hours of life when either radial load or axial load is applied at an input rotation speed of 3,000 r/min.
lick here for information about gearhead life
Radial Load and Axial Load
Rotation Direction
This indicates the rotation direction when viewed from the output shaft side.
Please check the table below for the gearhead output shaft rotation direction as viewed from the motor output shaft side of the standard type.
| Type | Gear Ratio | Rotation Direction as Viewed From the Motor Output Shaft Side |
|---|---|---|
| PS Geared Type | Overall gear ratio | Same direction |
Standard
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with regulations and standards for each of our product series can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.
