Specifiche

Caratteristiche

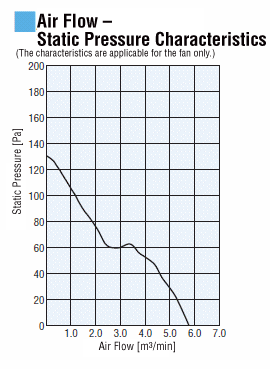

Characteristics Diagram

Characteristics Diagram

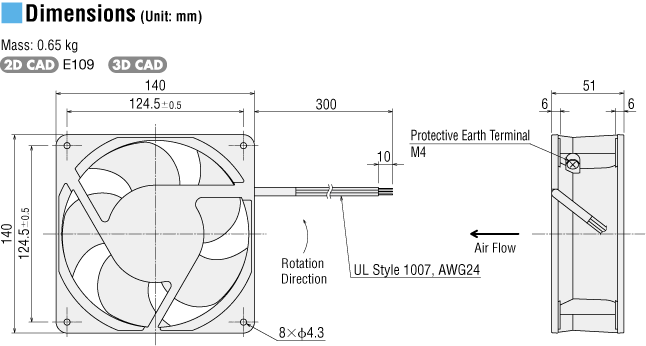

Dimensioni

Fan

Fan

Panel Cut-Out

Panel Cut-Out

Finger Guard (Included)

Finger Guard (Included)

Scarica i dati

Altre Specifiche

General Specifications

Item	Specifications
Insulation Resistance	Value measured between the windings and the case after continuous operation at normal ambient temperature and humidity. (For details, please refer to the table below.)
Dielectric Strength	After continuous operation at normal ambient temperature and humidity, no abnormality is observed when 50 Hz or 60 Hz 500 VAC is applied between the windings and the case for 1 minute.
Overheat Protective Device	Built-in burnout prevention circuit
Operating Ambient Temperature	Non-freezing/non-condensing. (For details, please refer to the table below.)
Operating Ambient Humidity	non-condensing (For details, please refer to the table below.)
Thermal Class	UL/CSA Standards: 105 (A), EN Standards: 120 (E)

Insulation resistance, operating ambient temperature, operating ambient humidity

Type	Product Name	Insulation Resistance	Operating Ambient Temperature	Operating Ambient Humidity
S Type	MDS625H-24	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+60 °C	85 % max.
	MDS825H-24
	MDS825YH-24			20~85 %
	MDS925H-24		-20~+70 °C	85 % max.
	MDS1238H-24
	MDS1751H-24
	MDS1751FH-24
	MDS420-12	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+70 °C	20~85 %
	MDS420-24
	MDS515-12
	MDS515-24
	MDS625-24
	MDS625Y-24
	MDS825-24
	MDS825Y-24
	MDS925-24
	MDS925Y-24
	MDS1225Y-24
	MDS1225Y2-24
	MDS1238-24			85 % max.
	MDS1451-24		-10~+60 °C
	MDS1751-24	Min. 10 MΩ as a value measured by a 250 VDC megger
A Type	MDA420-24L	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+70 °C	20~85 %
	MDA515-24L
	MDA625-24L
	MDA625Y-24L
	MDA825-24L
	MDA925-24L
	MDA1225-24L
	MDA1238-24L
	MDA1451-24L		-10~+60 °C	85 % max.
	MDA625-24	Min. 10 MΩ as a value measured by a 250 VDC megger	-10~+60 °C	85 % max.
	MDA825-24
	MDA925-24
	MDA1225-24
	MDA1238-24	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+70 °C
	MDA1451-24		-10~+60 °C
	MDA1751-24
E Type	MDE625-24L	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+70 °C	85 % max.
	MDE825Y-24L			20~85 %
	MDE925Y-24L
	MDE1225-24L	Min. 10 MΩ as a value measured by a 250 VDC megger	-10~+60 °C	85 % max.
	MDE1238Y-24L	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+70 °C	20~85 %
	MDE1451-24L2		-10~+60 °C	85 % max.
	MDE1751-24L		-20~+70 °C
	MDE1751F-24L
V Type	MDV420-24S	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+70 °C	20~85 %
	MDV515-24S
	MDV625-24S			85 % max.
	MDV825-24S
	MDV825Y-24S			20~85 %
	MDV925-24S			85 % max.
	MDV1225-24S			20~85 %
	MDV1238-24S			85 % max.
P Type	MDP825-24L	Min. 10 MΩ as a value measured by a 500 VDC megger	-20~+70 °C	85 % max.
	MDP925-24L
	MDP925Y-24L			20~85 %
	MDP1238-24L			85 % max.

Specifications of Stop Sensor

Sensor signal outputs when cooling fans stop rotating while the power is on.

Sensor Specifications

Sensor in Operation	When locked
Output Mode	Open-collector output
Output Condition	During Rotation: L level (Internal transistor ON) When Locked: H level (Internal transistor OFF)
Maximum Rating	Maximum Applied Voltage: 30 VDC max. Maximum Inflow Current: 5 mA max. However, 15 mA max. for MD625B-□L, MD825B-□L, MD925A-□L, C-MD925A-24L.
Delay Function	None (An external delay circuit is required if sensor detection is to be avoided when cooling fans start. The delay time should be 1 second min.)

Sensor output circuit connection example

Standard

Regulations and Standards Materials

Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)

Explanations of the Global Laws, Regulations and Standards can be found here.

Information about our compliance with regulations and standards for each of our product series can be found here.

Hazardous Substances

The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).

For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.

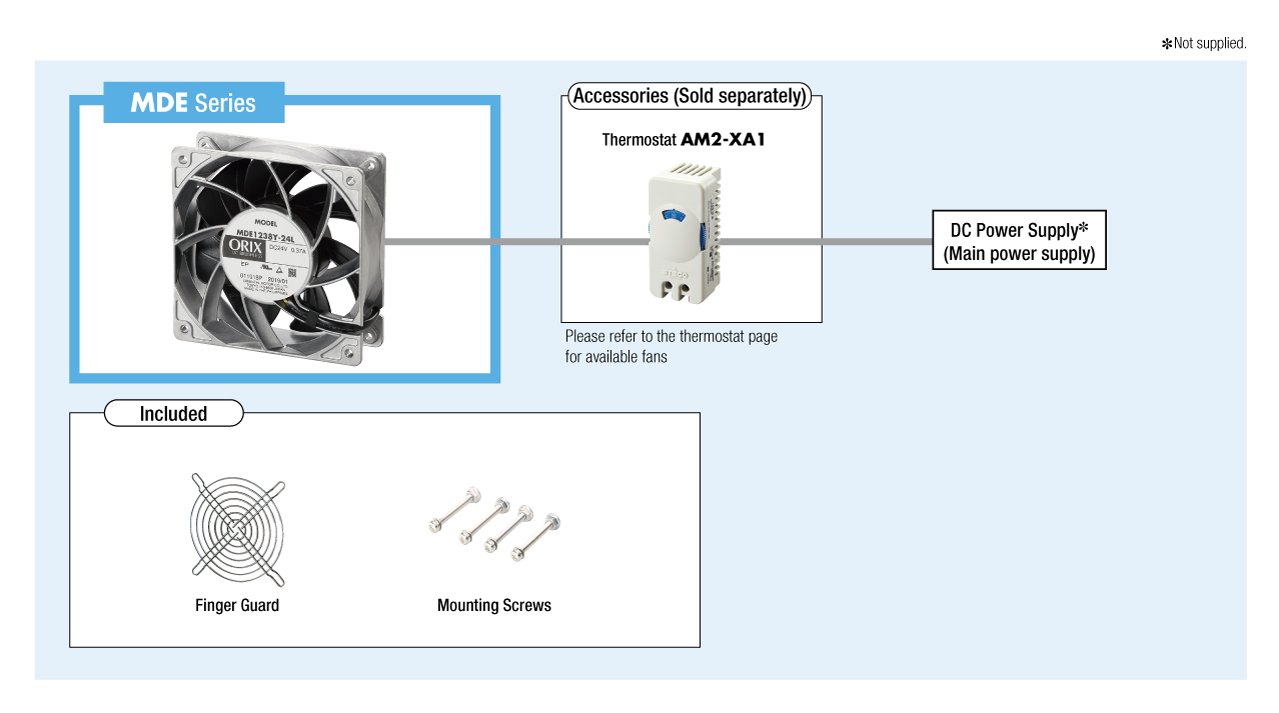

Configurazione del sistema

Prodotti correlati

Thermostat for Fan

Products	Features
AM2-XA1	Features	Automatically operates and stops fans in response to temperature changes in the equipment. This helps improve the equipment's "environmental" performance in terms of energy savings, noise reduction, etc. Setting temperature range 0~+60 °C (setting error ±5 °C) Easy to set temperature with thumbwheel dial Designed for optimal air flow circulation, enabling stable operation Compact size Width 33 mm × Height 70 mm × Depth 42.5 mm *For the number of applicable cooling fans that can be used, click here. Note Cannot be used with three-phase type fans.
