Integrated Robot Controller & Drivers MRCU Series

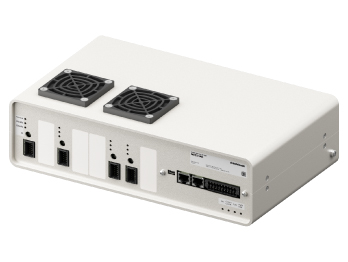

MRCU4AK
Robot Controller
| Classificazione prodotto | Nome del prodotto | Prezzo di listino | Data di spedizione |
|---|---|---|---|
| Robot Controller | MRCU4AK | Prodotto corrente | |
Notice: The shipping date refers to the time of dispatch from the warehouse in Düsseldorf/Germany. Shipments with 30 pieces or more will require air freight.
Incluso
- Robot Controller: I/O Signal Connector （CN5）
Specifiche
Caratteristiche
Positioning Distance-Positioning Time (Reference Values)
Positioning Distance-Positioning Time (Reference Values)

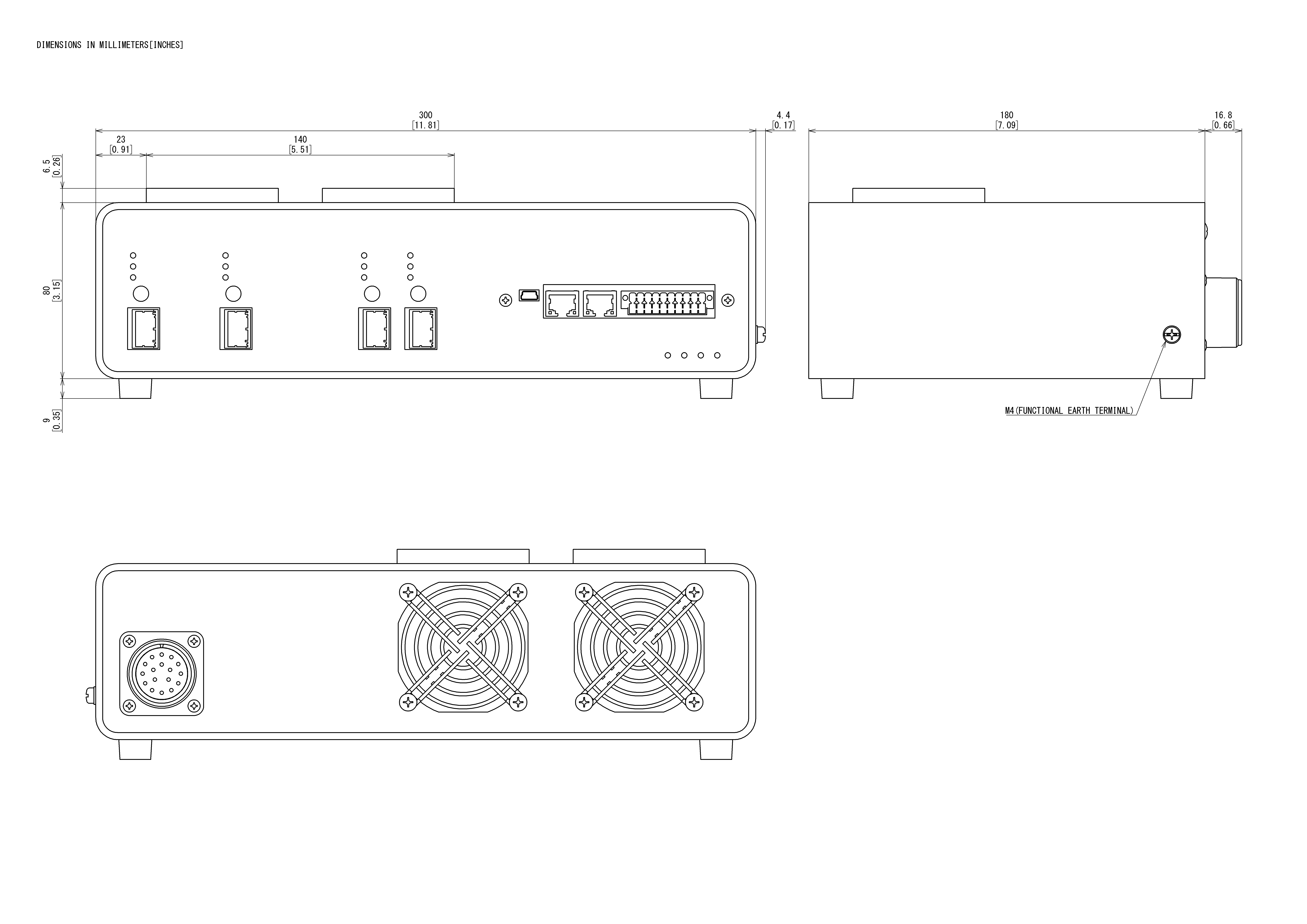

Dimensioni
Scarica i dati
Altre Specifiche
EtherNet/IP Specifications
| Communication Protocol | EtherNet/IP (CT17 compliant) | |
|---|---|---|
| Vendor ID | 187: Oriental Motor Company | |
| Device Type | 43: Generic Device | |
| Transmission Rate | 10/100 Mbps (autonegotiation) | |
| Communication Mode | Full duplex/half duplex (autonegotiation) | |
| Cable Specification | Shielded Twisted Pair (STP) cable Straight/cross, Category 5e or higher recommended (cable length: 50 m or less) |
|
| Number of Occupied Bytes | Output (Scanner → MRC01) | 2~228 bytes |
| Input (MRC01 → scanner) | 2~228 bytes | |
| Implicit Communication | Number of Connections Supported | 2 |
| Connection Type | Exclusive owner, input only | |
| Communication Cycle | 10~3,200 ms | |
| Connection type (Scanner → MRC01) |
Point−to−Point | |
| Connection type (MRC01 → Scanner) |
Point−to−point, multicast | |
| Data Trigger | Cyclic | |
| IP Address Setting Method | Parameters, DHCP | |
| Supported Topologies | Star, linear, ring (device level ring) | |
General Specifications
| Operating Environment | Ambient temperature: 0~+40°C (Non-freezing) Humidity: 85% max. (Non-condensing) Atmosphere: No corrosive gases or dust. Do not expose to water or oil. |
|---|
