Hollow Rotary Actuators DGII Series

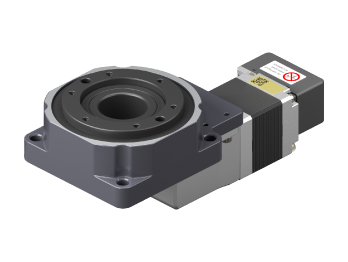

DGR60R30-AZAKR
Actuator
| Classificazione prodotto | Nome del prodotto | Prezzo di listino | Data di spedizione |
|---|---|---|---|
| Actuator | DGR60R30-AZAKR | 1,239.00 € | Up to 5 pcs Estimated Ship 6weeks |
• Specifications and various data of combination products may be shown on the combination product page. Please check the page of the combination product.
Notice: The shipping date refers to the time of dispatch from the warehouse in Düsseldorf/Germany. Shipments with 30 pieces or more will require air freight.
Incluso
- Actuator: None
Specifiche
Caratteristiche

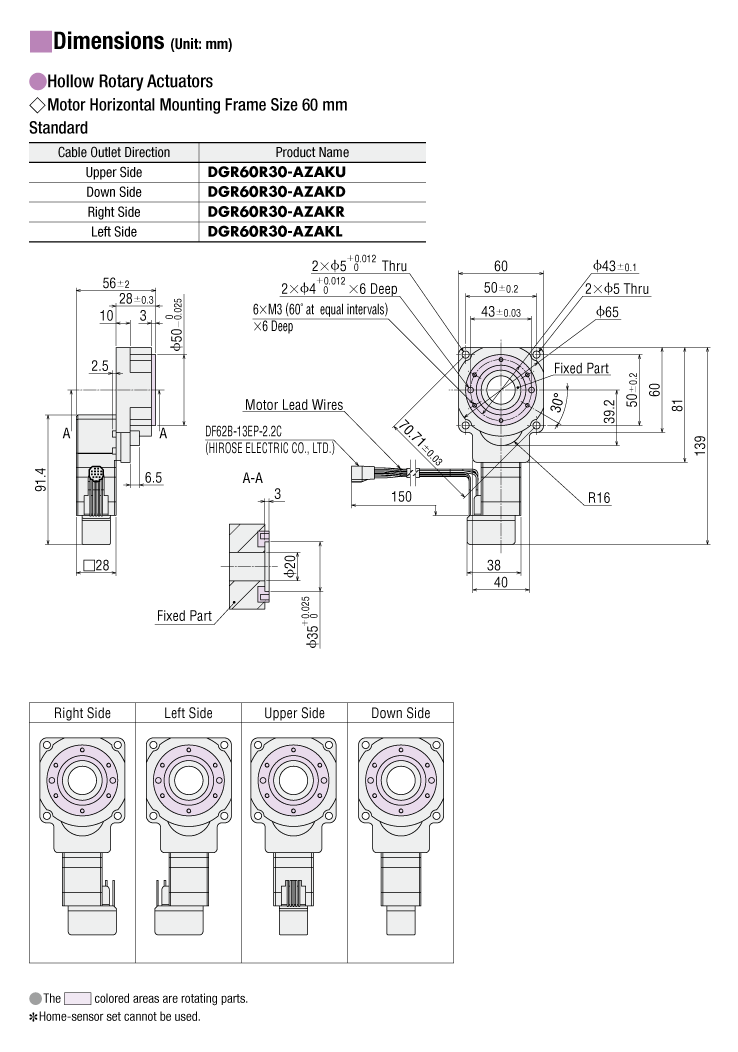

Dimensioni
Scarica i dati
Altre Specifiche
Actuator General Specifications
| Motor | AZ Series | |
|---|---|---|
| Operating Environment (In operation) | Ambient Temperature | 0∼+40°C (Non-freezing) |
| Ambient Humidity | 85% max. (Non-condensing) | |
| Atmosphere | No corrosive gases or dust. No exposure to water, oil or other liquids. | |
| Multi-Rotation Detection Range in Power OFF State (Motor output shaft) |
Frame sizes 60 mm: ±450 rpm (900 rpm) Frame sizes 85 mm, 130 mm: ±900 rpm (1800 rpm) |
|
Rotation Direction
Indicates the rotation direction when viewed from the output table side.
The illustration shows the motor vertical mounting. The rotation direction is also the same for the motor horizontal mounting.
Standard
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with regulations and standards for each of our product series can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.
