Specifiche

Caratteristiche

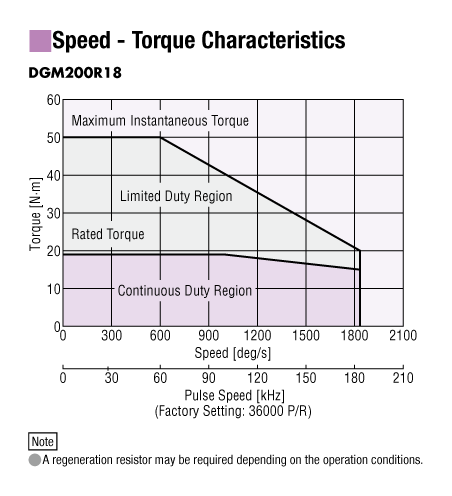

Speed - Torque Characteristics (Reference values)

Speed - Torque Characteristics (Reference values)

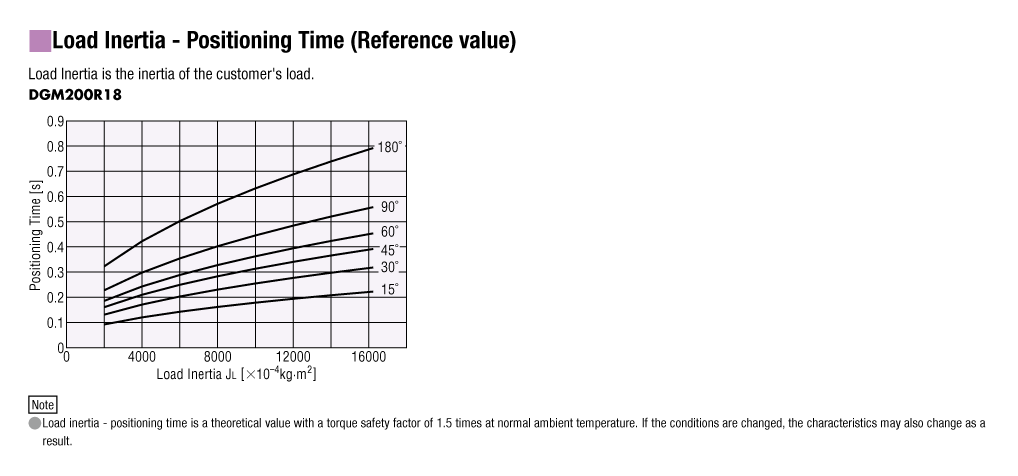

Load Inertia – Positioning Time (Reference value)

Load Inertia – Positioning Time (Reference value)

Mechanical Precision (At no load)

Mechanical Precision (At no load)

Displacement by Load Moment (Reference value)

Displacement by Load Moment (Reference value)

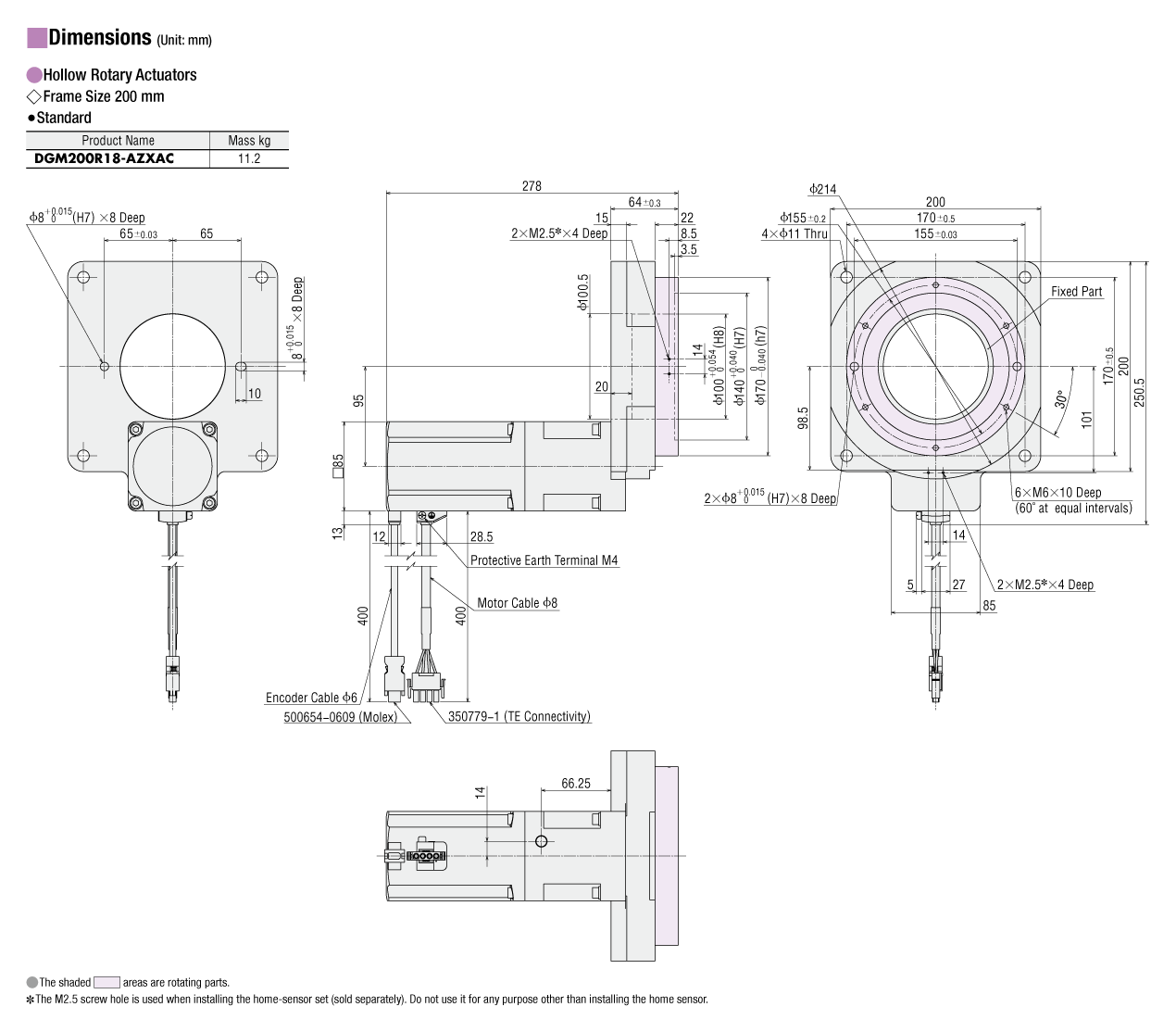

Dimensioni

Actuator

Actuator

Connection Cable for Motor (When Selected)

Connection Cable for Motor (When Selected)

Flexible Connection Cable for Motor (When Selected)

Flexible Connection Cable for Motor (When Selected)

Connection Cables for Encoder/ Length: 5m or less (When Selected)

Connection Cables for Encoder/ Length: 5m or less (When Selected)

Connection Cables for Encoder/ Length: 7m or more (When Selected)

Connection Cables for Encoder/ Length: 7m or more (When Selected)

Flexible Connection Cables for Encoder/ Length: 5m or less (When Selected)

Flexible Connection Cables for Encoder/ Length: 5m or less (When Selected)

Flexible Connection Cables for Encoder/ Length: 7m or more (When Selected)

Flexible Connection Cables for Encoder/ Length: 7m or more (When Selected)

Scarica i dati

Altre Specifiche

General Specifications (Actuator)

Item		Specifications (Installed Motor: AZX Series)
Operating Environment (When operating)	Ambient Temperature	0~+40 °C (Non-freezing)*
	Ambient Humidity	85 % max. (Non-condensing)
	Atmosphere	No corrosive gases or dust. No exposure to water, oil or other liquids.
Multi-Rotation Detection Range in Power OFF State (Motor output shaft)		± 900 revolutions (1800 revolutions)

• *According to Oriental Motor’s measurement conditions

Rotation Direction

Indicates the rotation direction when viewed from the output table side.

Standard

Regulations and Standards Materials

Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)

Explanations of the Global Laws, Regulations and Standards can be found here.

Information about our compliance with regulations and standards for each of our product series can be found here.

Hazardous Substances

The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).

For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.
