Brushless Motors

BLM5300HPK-5XH50S

Stampa tutte le informazioni sul prodotto in una volta sola
BLM5300HPK-5XH50S

Motor
  Questo prodotto non è più disponibile per la vendita.
Classificazione prodotto Nome del prodotto Prezzo di listino Data di spedizione
Motor BLM5300HPK-5XH50S 865.00 € Prodotto fuori produzione
(31.3.2026 fuori produzione)
• This product is a motor only (combination type) . A combination of driver circuit and connection cable is required for driving.

Incluso

  • Motor: None
    Gearhead: Mounting Screws, Parallel Key, Safety Cover

Specifiche

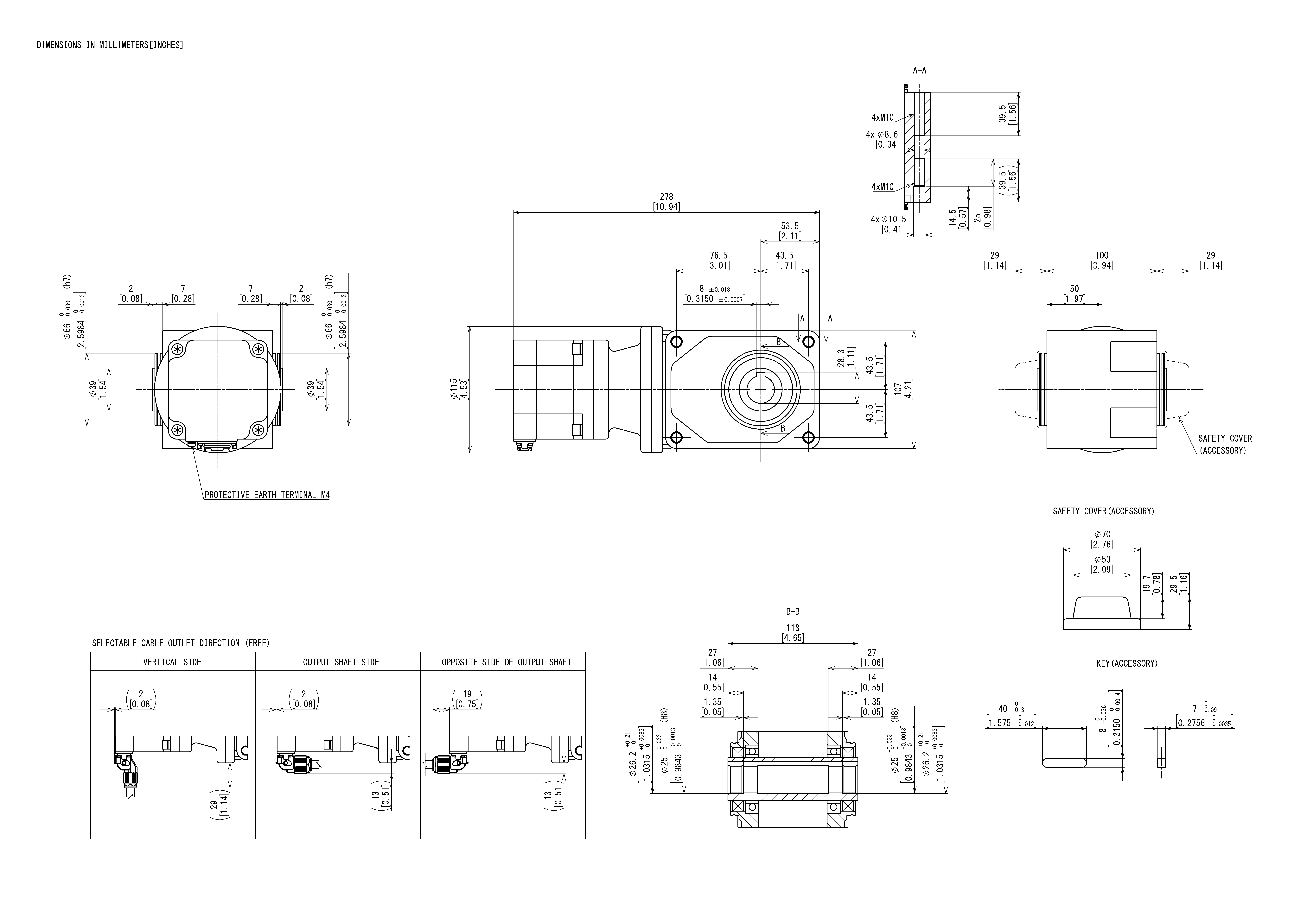

Dimensioni

Motor/Gearhead
Motor/Gearhead

Motor/Gearhead

Scarica i dati

Altre Specifiche

Permissible Radial Load and Permissible Axial Load

Gear Ratio Motor Shaft Rotation Speed
r/min		 60 W 120 W 200 W Min.
Permissible Radial Load
20 mm From Mounting Surface
N		 Permissible Axial Load
N		 Permissible Radial Load
20 mm From Mounting Surface
N		 Permissible Axial Load
N		 Permissible Radial Load
20 mm From Mounting Surface
N		 Permissible Axial Load
N
5 80~1500 - - - - 1346 307
3000 - - - - 942 215
3600 - - - - 673 154
10 80~1500 265 88 363 108 1663 380
3000 201 67 276 82 1164 266
3600 148 49 203 60 832 190
15 80~1500 341 108 484 147 1882 429
3000 259 82 368 112 1317 300
3600 191 60 271 82 941 215
20 80~1500 417 137 605 186 2035 466
3000 317 104 460 141 1425 326
3600 234 77 339 104 1018 233
30 80~1500 531 177 806 245 2309 527
3000 404 135 613 186 1616 369
3600 297 99 451 137 1155 264
50 80~1500 682 226 971 294 2681 613
3000 518 172 738 223 1877 429
3600 382 127 544 165 1341 307
100 80~1500 758 245 1045 324 3436 785
3000 576 186 794 246 2405 550
3600 424 137 585 181 1718 393
200 80~1500 836 275 1127 343 3436 785
3000 635 209 857 261 2405 550
3600 468 154 631 192 1718 393
About Load Position

Calculating the Permissible Radial Load for Hollow Shaft Type

The formula for calculating the permissible radial load varies depending on the mechanism.

  • When One Side of the Load Shaft is Not Supported by the Bearing Unit

    When One Side of the Load Shaft is Not Supported by the Bearing Unit

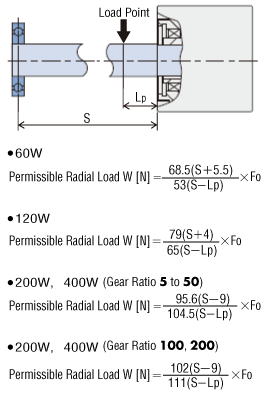

  • When One Side of the Load Shaft is Supported by the Bearing Unit

    When One Side of the Load Shaft is Supported by the Bearing Unit
F0 [N]:
Permissible Radial Load when 20 mm from Mounting Surface
LP [mm]:
Distance from Mounting Surface to Load Point
S [mm]:
Distance from Flange-Mounting Surface to Bearing Unit
  • For the permissible radial load when 20 mm from the mounting surface, please refer to the table above.

Standard

Regulations and Standards Materials

Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)

Explanations of the Global Laws, Regulations and Standards can be found here.

Information about our compliance with safety standards for each of our product models can be found here.

Hazardous Substances

The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).

For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.
