Specifiche

Caratteristiche

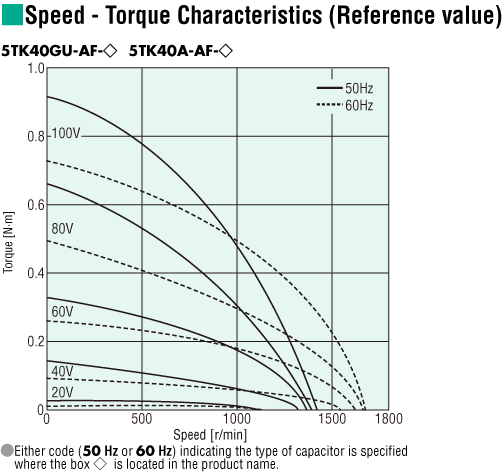

Speed - Torque Characteristics (Reference values)

Speed - Torque Characteristics (Reference values)

How to Read Speed- Torque Characteristics Diagram

How to Read Speed- Torque Characteristics Diagram

Dimensioni

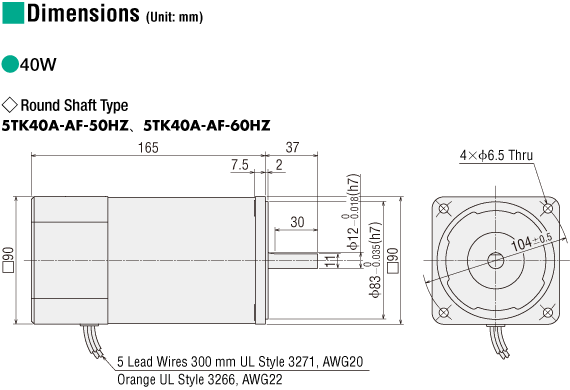

Motor

Motor

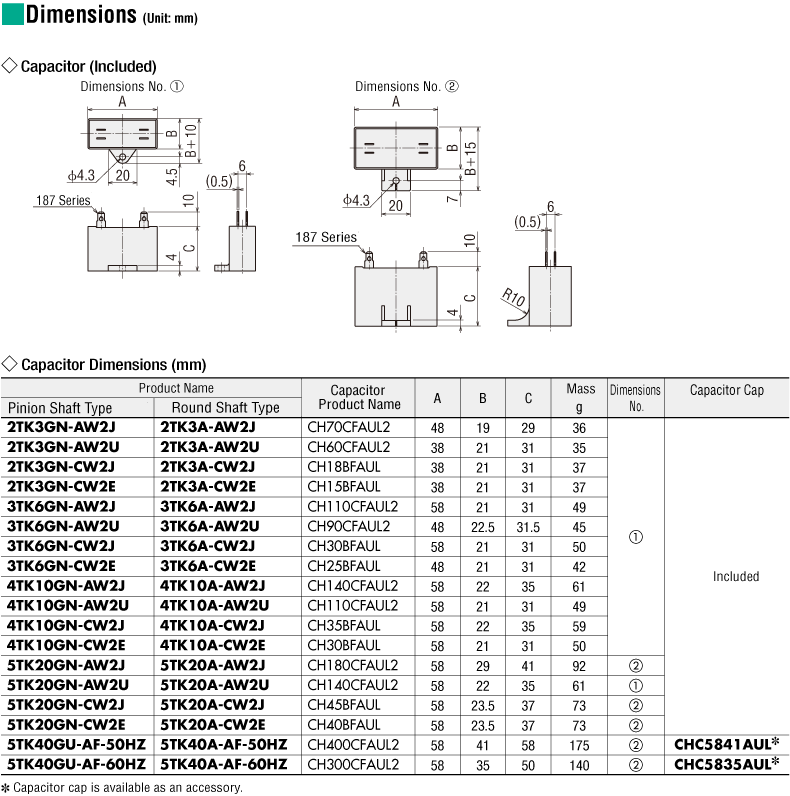

Capacitor

Capacitor

Scarica i dati

Altre Specifiche

General Specifications

World K Series 3 W, 6 W, 10 W, 20 W

Item	Specifications
Insulation Resistance	After rated operation at normal ambient temperature and humidity, the measurement between the coils and the case is 100 MΩ min. using a 500 VDC megger.
Dielectric Strength	No abnormality is observed even with an application of 1.5 kVAC at 50 Hz between the coils and the case for 1 minute after rated operation at normal ambient temperature and humidity.
Temperature Rise	A gearhead or equivalent heat sink* connected to the motor and the winding temperature rise is measured at 80 °C max. using the resistance change method after continuous rated operation under normal ambient temperature and humidity.
Thermal Class	130 (B)
Overheat Protective Device	Built-in thermal protector (automatic return type) Open: 130 ±5 °C, Return: 85 ±20 °C
Operating Ambient Temperature	Single-phase 50 V, single-phase 100 V, single-phase 200 VAC: -10~+50 °C (non-freezing) Single-phase 60 V, single-phase 110 V, single-phase 115 VAC, single-phase 220 V, single-phase 230 V: -10~+40 °C (non-freezing)
Operating Ambient Humidity	85 % max. (non-condensing)
Degree of Protection	IP20

• *Heat Sink Size (Material: Aluminum)

Motor Type	Size (mm)	Thickness (mm)
3 W type	115 × 115	5
6 W type	125 × 125
10 W type	135 × 135
20 W type	165 × 165

K Series 40 W

Item	Specifications
Insulation Resistance	After rated operation at normal ambient temperature and humidity, the measurement between the coils and the case is 100 MΩ min. using a 500 VDC megger.
Dielectric Strength	No abnormality is observed even with an application of 1.5 kVAC at 50 Hz between the coils and the case for 1 minute after rated operation at normal ambient temperature and humidity.
Temperature Rise	After rated operation at normal ambient temperature and humidity, the measurement value of the motor surface temperature rise is 45 °C max. using the thermometer method.
Thermal Class	120 (E)
Operating Ambient Temperature	-10~+50 °C (non-freezing)
Operating Ambient Humidity	85 % max. (Non-condensing)

Permissible Radial Load and Permissible Axial Load of Round Shaft Type

Permissible Radial Load

Motor		Permissible Radial Load N
Frame Size □ (mm)	Output Shaft Diameter φ (mm)	From Shaft End 10 mm	From Shaft End 20 mm
42	5	40	-
60	6	50	110
70	6	40	60
80	8	90	140
90	10	140	200
	12	240	270

Permissible Axial Load

Avoid axial load as much as possible. If an axial load is unavoidable, keep it at half or less of the motor mass.

Standard

Hazardous Substances

The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).

For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.
