Reversible Motors K Series
5RK40A-A
Motor
Dieses Produkt ist derzeit nicht mehr zum Verkauf verfügbar.
| Produktklassifikation | Produktname | Preis | Versand |
|---|---|---|---|
| Motor | 5RK40A-A | - | Eingestelltes Produkt (Produktionsende 31.3.2024) |
Inklusive
- Motor: Motor, Capacitor, Operating Manual
Spezifikationen
Daten-Download
Weitere Spezifikationen
General Specifications
| Item | Specifications |
|---|---|
| Insulation Resistance | After rated operation at normal ambient temperature and humidity, the measurement between the coils and the case is 100 MΩ min. using a 500 VDC megger. |
| Dielectric Strength | After continuous rated operation at normal ambient temperature and humidity, no abnormalities were observed even with an application of 1.5 kV at 50 Hz or 60 Hz between the coils and the case for 1 minute. |
| Temperature Rise | After rated operation at normal ambient temperature and humidity, the measurement value of the motor surface temperature rise is 60 °C max. (45 °C max. for motors with fans) using the thermometer method. |
| Thermal Class | 120(E) |
| Operating Ambient Temperature | -10~+50 °C (Non-freezing) |
| Operating Ambient Humidity | 85 % max. (Non-condensing) |
Permissible Radial Load and Permissible Axial Load of Round Shaft Type
Permissible Radial Load
| Motor | Permissible Radial Load N | ||
|---|---|---|---|
| Frame Size □ (mm) | Output Shaft Diameter φ (mm) | From Shaft End 10 mm |
From Shaft End 20 mm |
| 42 | 5 | 40 | - |
| 60 | 6 | 50 | 110 |
| 70 | 6 | 40 | 60 |
| 80 | 8 | 90 | 140 |
| 90 | 10 | 140 | 200 |
| 12 | 240 | 270 | |
Permissible Axial Load
Avoid axial load as much as possible. If an axial load is unavoidable, keep it at half or less of the motor mass.

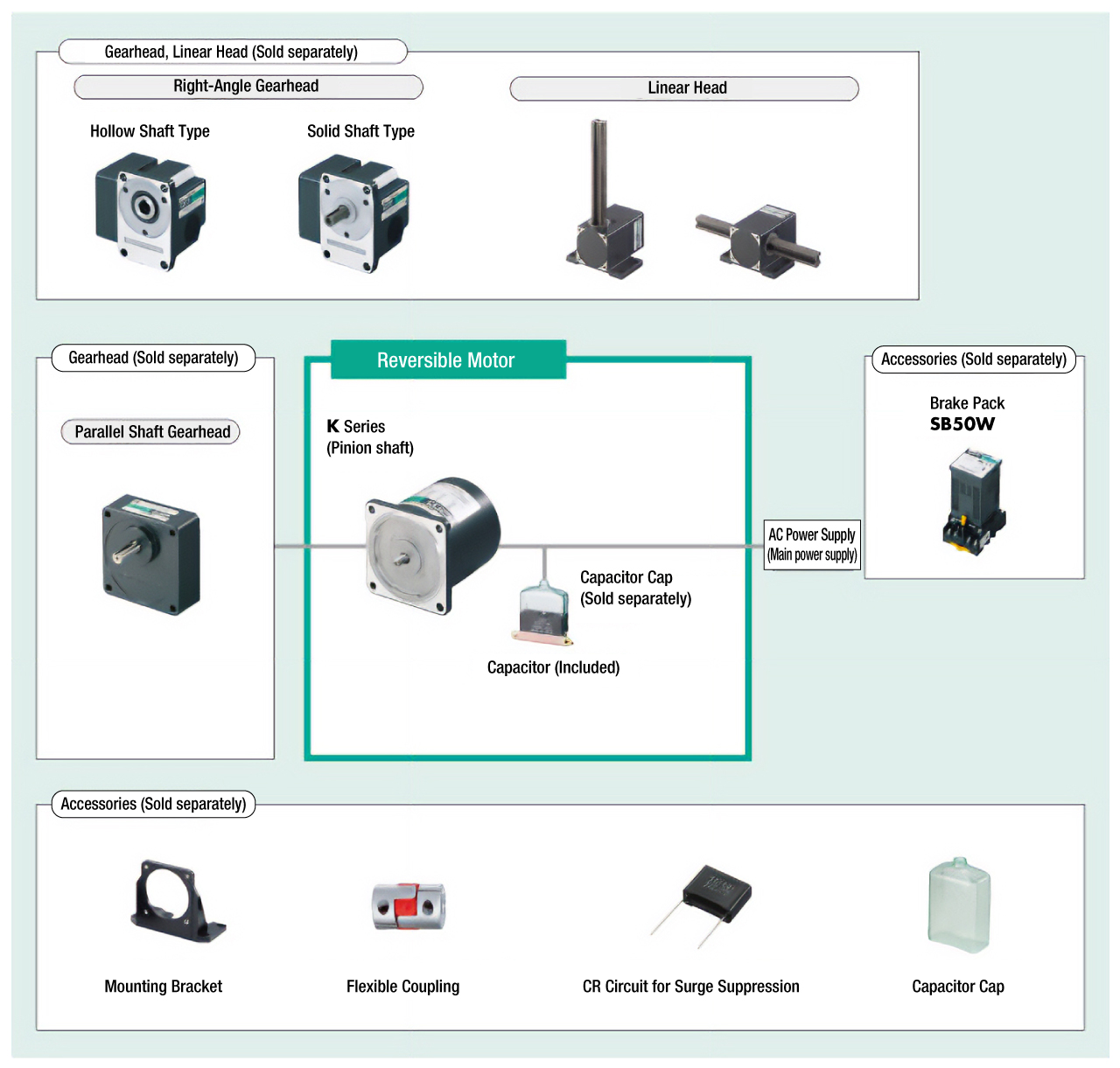

Systemkonfiguration
Verwandte Produkte
Brake Pack
| Products | Features | |
|---|---|---|
SB50W Series
|
Features |
This is a brake pack that enables instantaneous stopping, bidirectional rotation, and brake control of the motor, all in 1 unit.
|
Kabel und Zubehör
