Bürstenlose DC-Motoren
BLS-Serie
- AC-Stromversorgung 750 W / DC-Stromversorgung 25–120 W
- Version mit RS-485 Schnittstelle verfügbar
- Einfache Verdrahtung, einfacher Betrieb mit Power ON/OFF
- Drehzahlbereich (Ausgangsleistung)
100-2000 U/min (25 W, 40 W, 90 W)
100-4000 U/min (30 W, 60 W, 120 W, 750 W)
Ergänzung der Ausführung mit 750 W für AC-Stromversorgung.
Ein Motor ohne Getriebe mit Passfeder ist nun für 750 W verfügbar.
Eigenschaften | Bürstenlose DC-Motoren der BLS-Serie
Brushless Motor BLS Series Standard Model
The brushless motor BLS Series is suitable for applications such as belt conveyors and agitators that require stable continuous operation at a set speed. It is as easy to operate as an AC motor, and its compact, lightweight, and highly efficient design saves both space and energy. By adopting this motor, you can reduce power consumption, make efficient use of installation space, and contribute to higher equipment efficiency.
BLS Series Two-Minute Explanation
Watch the video showcasing the features of the BLS Series, which can be used as easily as an AC motor.

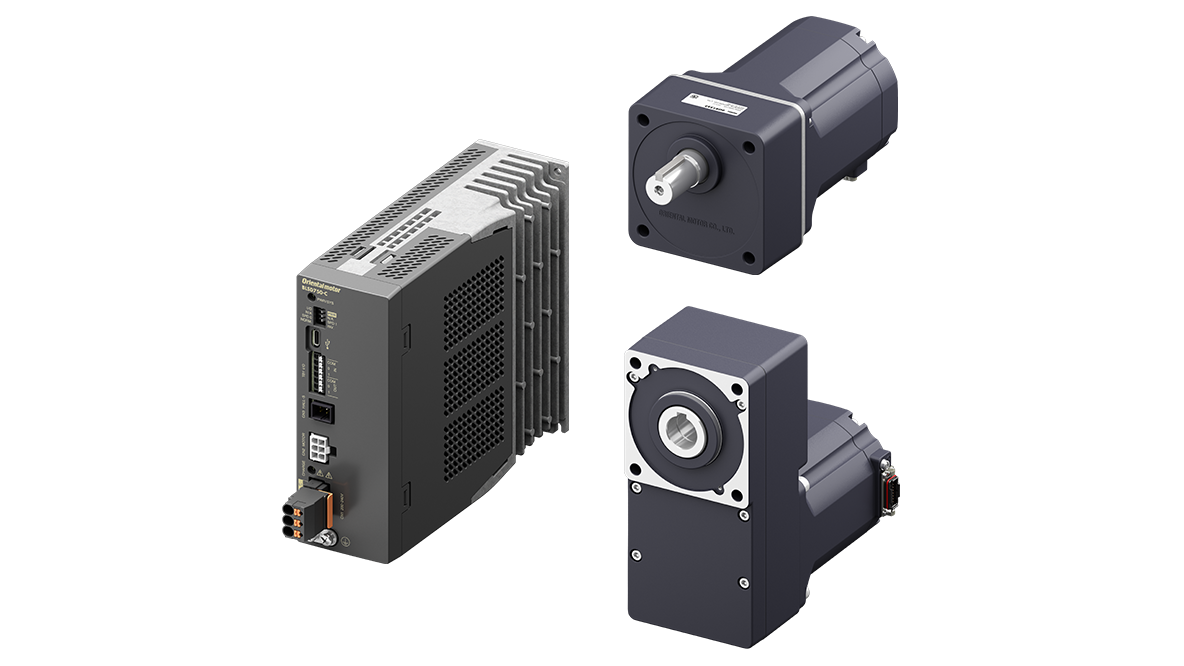

AC Input Type
- · Output Power
- 750 W
- · Power Supply Input
- 200-240 VAC
· Easy wiring, easy drive with power ON/OFF (Simple type driver)
· IE5 class high efficiency motor
· Motor and gearhead can be selected together, allowing for a smooth start-up the equipment. Contributes to more efficient design
- · Speed Control Range
- 100–4000 r/min
- Compact, energy-saving, low-noise brushless motors
- Contributes to equipment downsizing and reduces installation burden
- IE5-class high-efficiency motor reduces electricity costs and lowers CO2 emissions
- Fanless design for low-noise operation
- Easy connection with connector type
- Safe even in splash-prone environments (Degree of protection: IP66)
- Motor mounting method can be selected to suitable for the equipment
- Simple type driver
- Convenient functions for various applications
- Even easier with the support software MEXE02

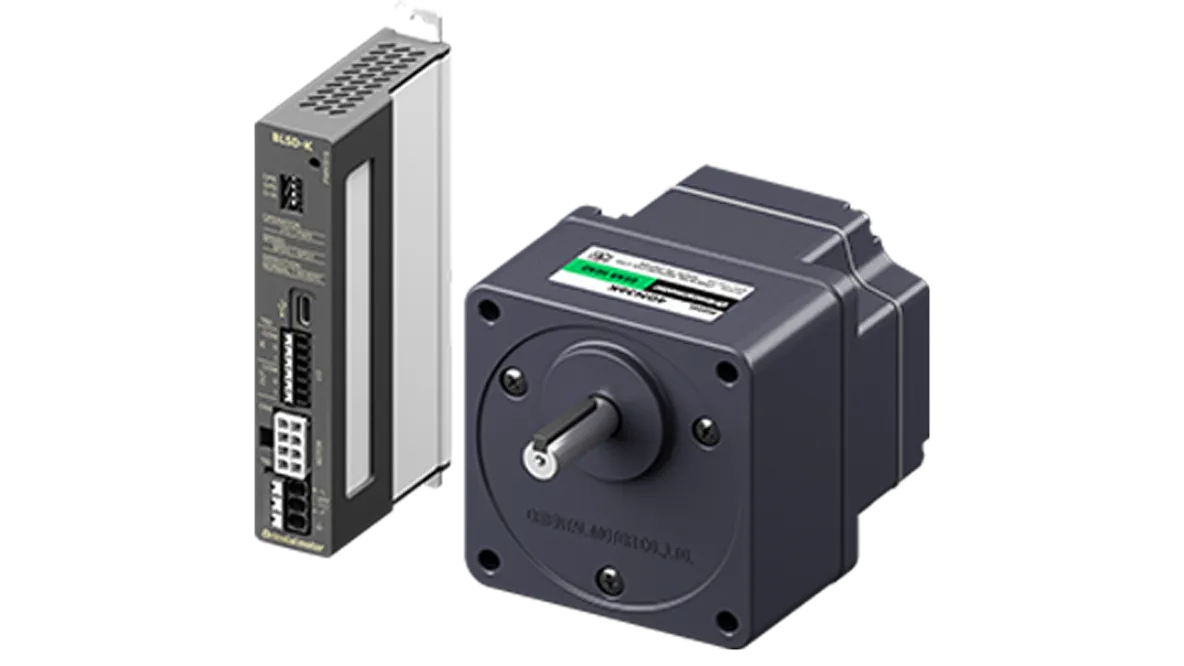

DC Input Type
- · Output Power
- 25 W, 30 W, 40 W, 60 W, 90 W, 120 W
- · Power Supply Input
- 24 VDC
· RS-485 communication compatible (RS-485 communication type driver)
· Easy wiring, easy drive with power ON/OFF (Simple type driver)
· The same gearhead as an AC motor can be used
- · Speed Control Range
- 100–2000 r/min (25 W, 40 W, 90 W)
100–4000 r/min (30 W, 60 W, 120 W)
Learn More About the BLS Series DC Power Supply (25 W~120 W)
