BLS Series AC Input Type 750 W - Features

AC Input Type 750 W

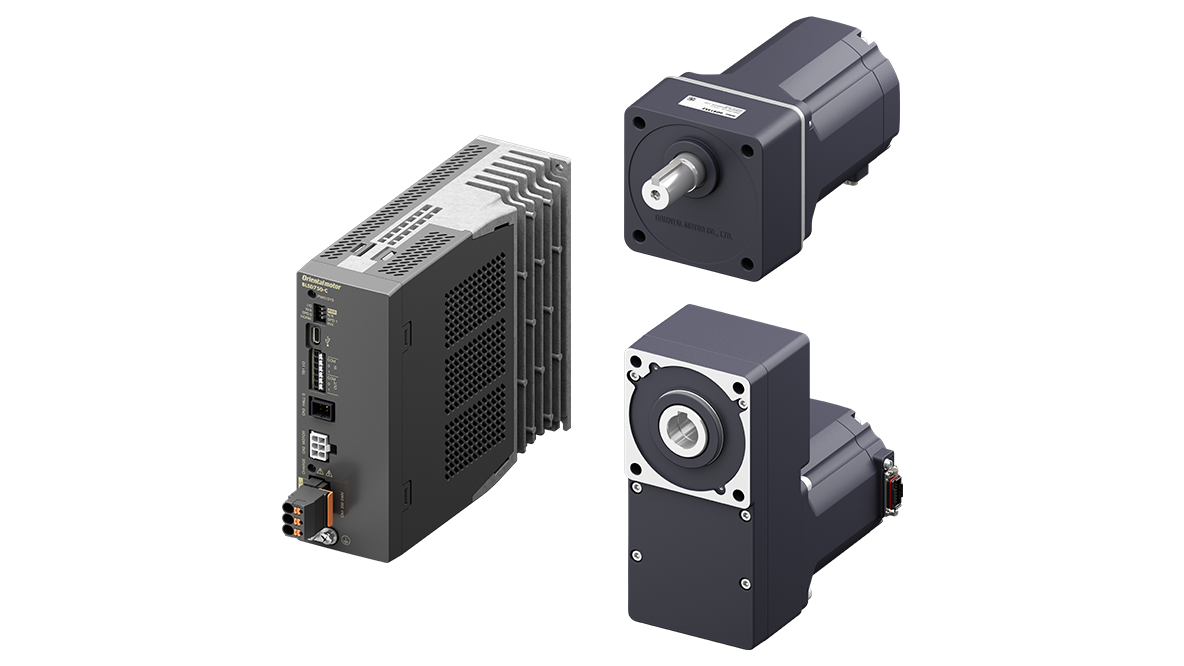

Brushless Motor BLS Series AC Input Type

Compact, Energy-Saving, Low-Noise Brushless Motors

Compact and Lightweight

Significantly reduced motor size
Contributes to downsizing of equipment

Energy-Saving

Achieved IE5 level
Reduced electricity costs

Low-Noise

Fanless design reduces noise level
In addition, there is no scattering of dust and other particles.

Contributes to the Downsizing of Equipment and Reducing the Burden During Installation

Brushless motors use permanent magnets in the rotor, making them highly efficient, compact, and lightweight.
In addition, the fanless structure has been achieved due to its high efficiency and low heat generation. It contributes to the downsizing of equipment and reducing the burden on workers.

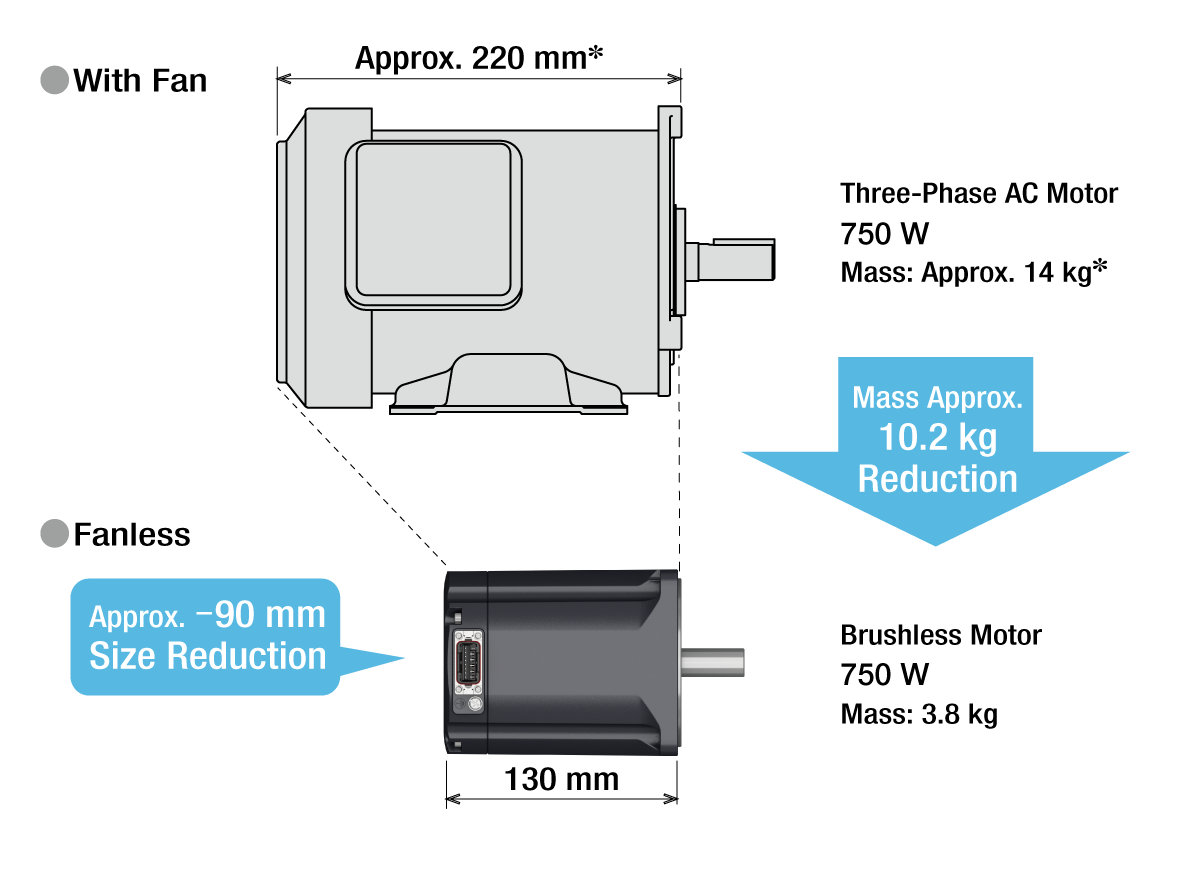

Figure comparing the size and mass of a three-phase AC motor (750 W, approx. 14 kg) and a brushless motor (750 W, 3.8 kg). The motor with fan is approximately 220 mm in length and the brushless motor is 130 mm in length, resulting in a size reduction of approximately 90 mm and a weight reduction of approximately 10.2 kg
  • *The value for a typical three-phase AC motor 750W.

IE5-Class High-Efficiency Motors Reduce Electricity Costs and CO2 Emissions

Motor Output Power 750 W (IE5)

This motor satisfies the efficiency class IE5* for speed control motors. Contributes to reducing electricity costs and CO2 emissions.

  • *Efficiency standard value (%) for speed control motors (rated speed 1801-6000 r/min) based on the international standard IEC TS 60034-30-2.

Energy-Saving Effect (Reference value for 1 unit)

Electricity costs and CO2 emissions can be reduced compared to 750 W induction motor (IE3).

Brushless Motor 750 W
and Driver		 IE3 Standard Value (82.5 %)*
Induction Motor 750 W		 Annual Reduction
Annual Electricity Consumption Approx. 7400 kWh/year Approx. 7960 kWh/year Reduced by 560 kWh/year
Annual Electricity Cost Approx. 167,800 JPY/year Approx. 180,600 JPY/year Reduced by 12,800 JPY/year
Annual CO2 Emissions Approx. 3380 kg/year Approx. 3640 kg/year Reduced by 260 kg/year
  • *Efficiency standard value (%) for induction motors (4 poles, 50 Hz) based on the international standard IEC 60034-30-1.

[Operating Conditions]
Operating Hours: 24 hours/day, 365 days/year
Unit Price of Electricity: 22.68 JPY/kWh
CO2 Emission Factor: 0.457 kg/kWh

Fanless for Low-Noise

Brushless motors have fanless structures due to their high efficiency and low heat generation. The noise level is reduced by approximately 20 dB when compared to a three-phase AC motor with fan.

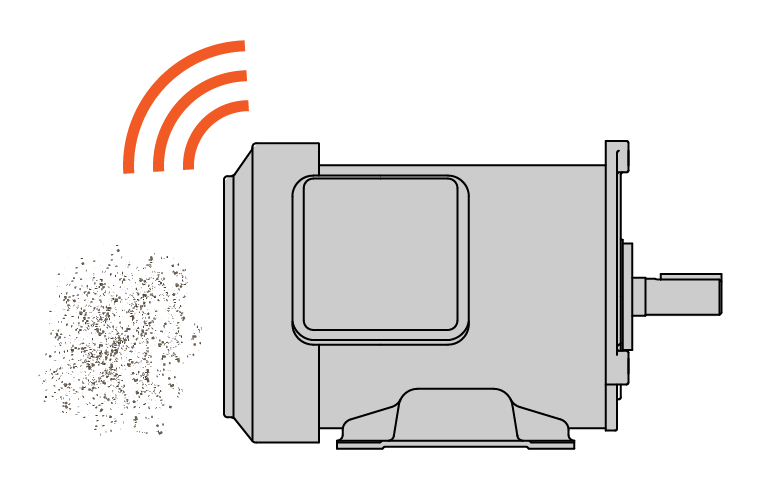

Comparing the noise level of a 750 W AC motor and a 750 W brushless motor, the brushless motor is approximately 20 dB lower.
Three-Phase AC Motor 750 W
(With Fan)

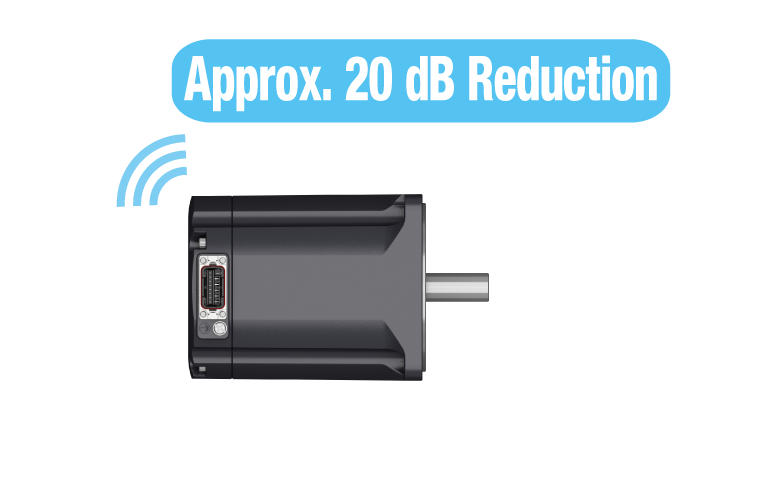

Comparative Figure Showing Low Noise Characteristics of Brushless Motor 750 W (Fanless)
Brushless Motor 750 W
(Fanless)

Measurement Conditions
・No load
・Speed: 1500 r/min
・Measured at 15 cm from the back of the motor

The Scattering of Dust and Other Particles Is Reduced Due to It Being Fanless.

In the case of a motor with a fan, the cooling fan generates wind, which may scatter dust and other particles in the surrounding area.
Brushless motors have no risk of dust dispersal due to it being fanless.

Connector Type for Easy Connection

Cable connection is easy due to the locking lever that does not require screw fitting.
Reduces the hassle of connecting cables during motor installation and maintenance.

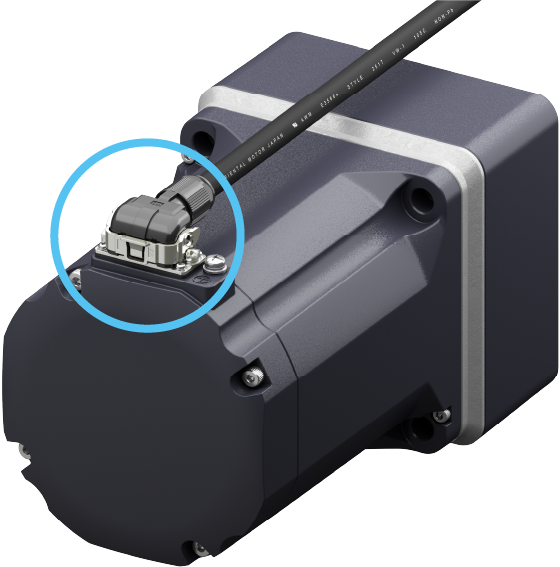

Brushless Motor 750 W Connector Type

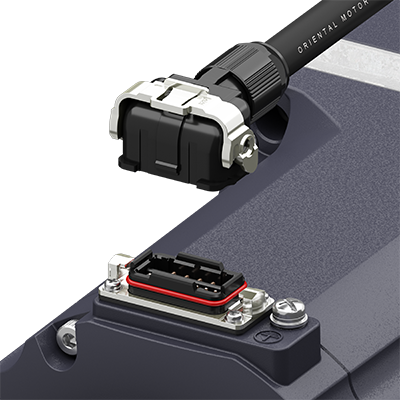

  • Instructions for Plugging in the Connector

    1. Plug in the connector

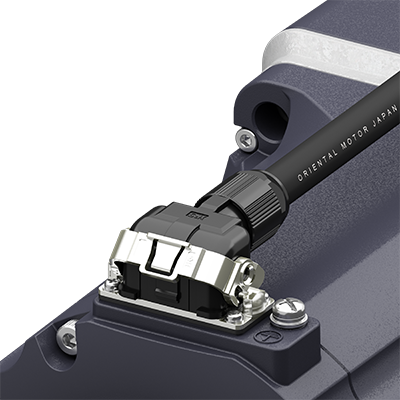

  • Instructions for Turning Down the Locking Lever

    2. Turn down the locking lever

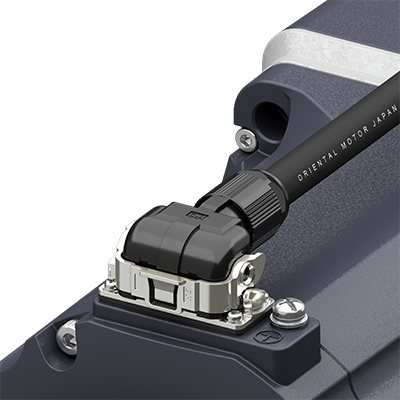

  • Appearance When Cable Connection Is Complete

    3. Connection complete

Safe Even in Splash-Prone Environments (Degree of Protection: IP66)

It is highly dust and water resistant and can be used in an environment where water droplets may splash on it.

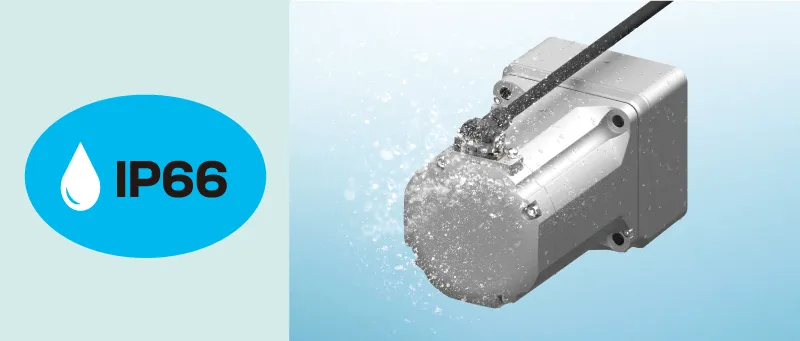

Brushless Motor 750 W Degree of Protection IP66

Selectable Motor Mounting Methods That Match Your Equipment

Brushless motors are compact and lightweight and can be mounted directly to equipment using motor flanges.
When mounting to the floor or a pedestal, foot mount can also be attached using separately sold mounting brackets.

  • For Brushless Motors

    • Flange Mount

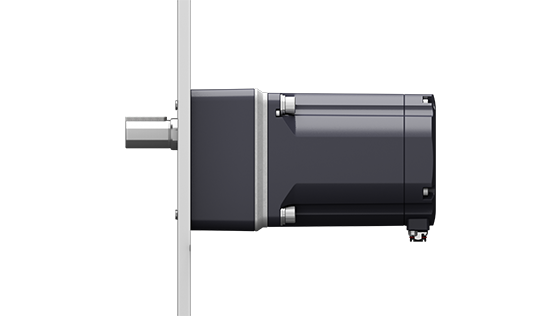

      Industrial Servo Motor With Mount, Side View with Shaft and Cable Connector
    • Foot Mounts with Mounting Brackets

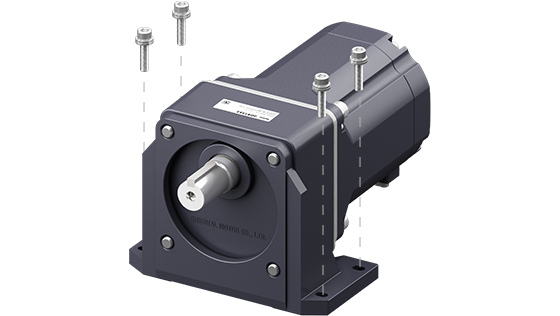

      Diagonal View of Motor With Gearbox and Mounting Bolt Locations

  • For AC Motors

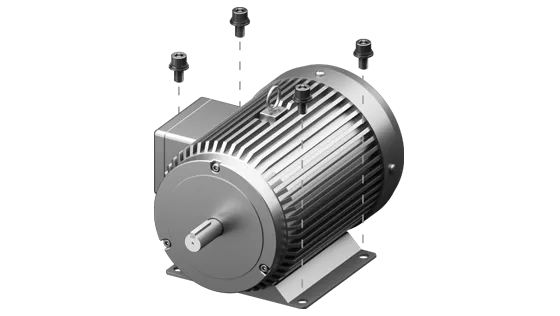

    Diagonal View of Foot-Mounted Three-Phase Electric Motor With Cooling Fins and Output Shaft

Simple Type Driver

The driver that can be easily operation in three steps: setting, connecting, and turn the power ON.

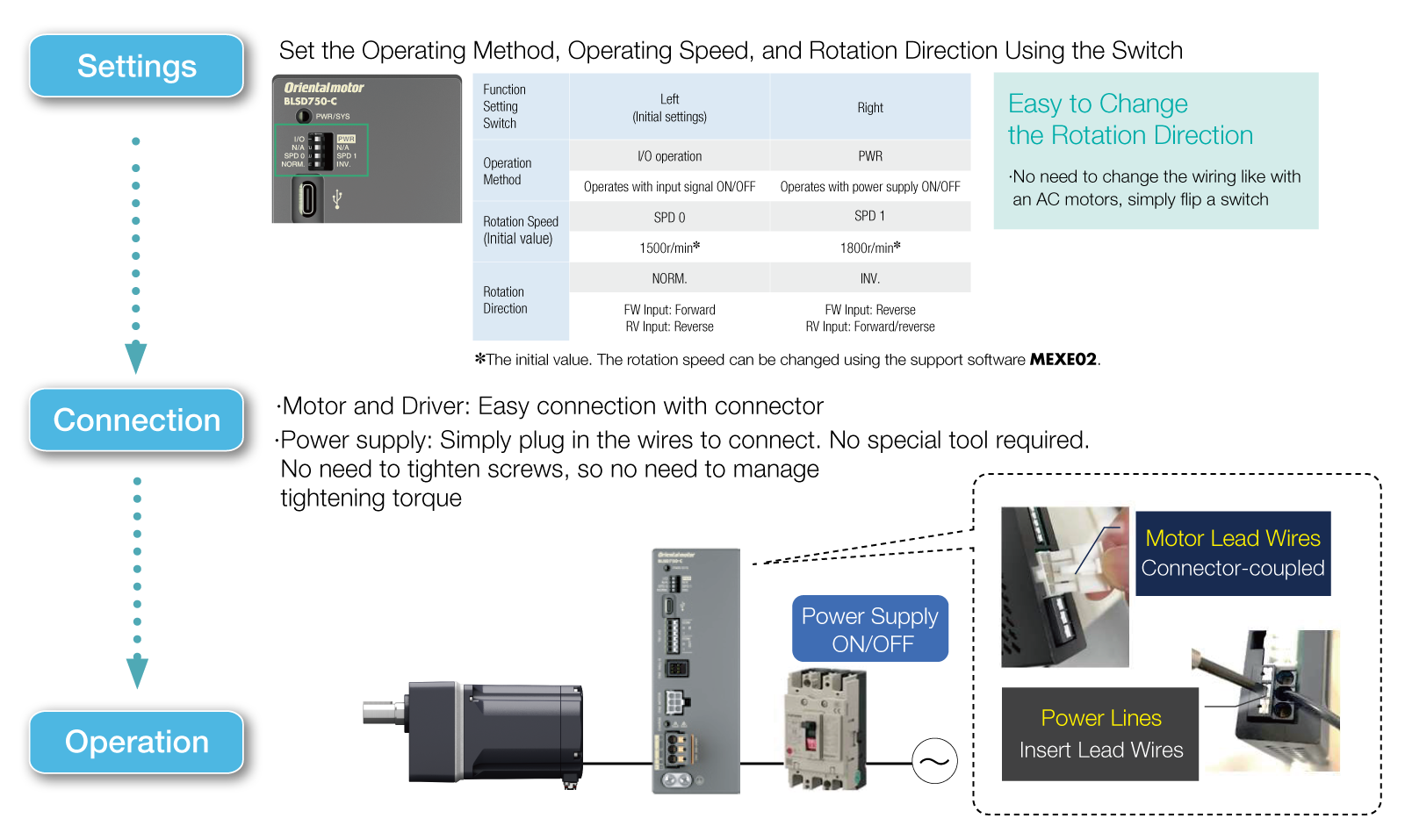

Very Simple to Set Up, Connect, and Operate

Equipped with Convenient Functions for Various Applications

ATL Function Automatically Limits Torque

The ATL function limits torque when the torque continues at the level detected by the overload alarm, preventing the motor from stopping when the overload alarm is triggered. The motor can continue to run even in the event of an unexpected overload.

ATL Function

This function can be utilized for the following applications.

  • It is necessary to continue driving even under high loads when starting agitation or crushing.

Agitator

Agitator Application Examples

Crusher

Crusher Application Examples

Easier to Use with the Support Software MEXE02

The Free MEXE02 Support Software Allows for More Detailed Configuration and Monitoring

The MEXE02 support software allows data setting and monitoring to be carried out simply via a PC.

The software can be downloaded for free.

Download MEXE02 support software here

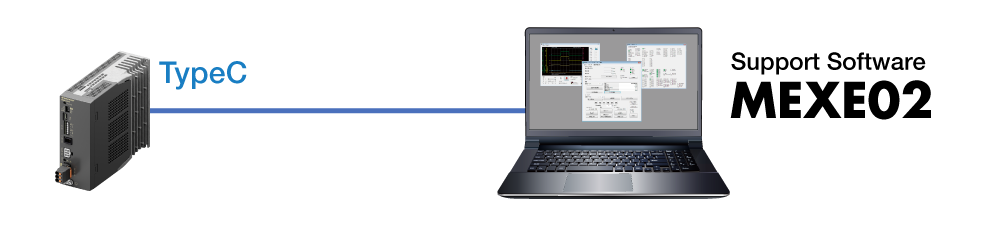

MEXE02_PC_connection

Related Products

View More About Brushless Motor (PM motor)
Brushless Motor (PM motor)

Brushless Motor
(PM Motor)

  • Compact and lightweight
  • Achieved IE5 efficiency class, contributing to energy savings
  • Fanless for Low Noise
  • Speed control is possible with an inverter
