Robot Controller

Narrowing Down Robot Controllers

This controller can control the compact industrial robot OVR with its arm combined with an αSTEP AZ Series motor and robots configured with the AZ Series, including OVR. It is also easy to set up for operation and is suitable for promoting automation in areas where regular industrial robots are too large, or the total costs are too great.

Robot Controller
Serienliste

Small Robots OVR

Articulated Robots

4-Axis Articulated Robot

4-Axis Articulated Robot
  • Parallel Link Mechanism
  • Horizontally Level at All Times to Allow for Stable Transport of Components
  • Maximum Payload 5 kg
  • Maximum Reach (Horizontal) 480/680/880 mm

SCARA Robots

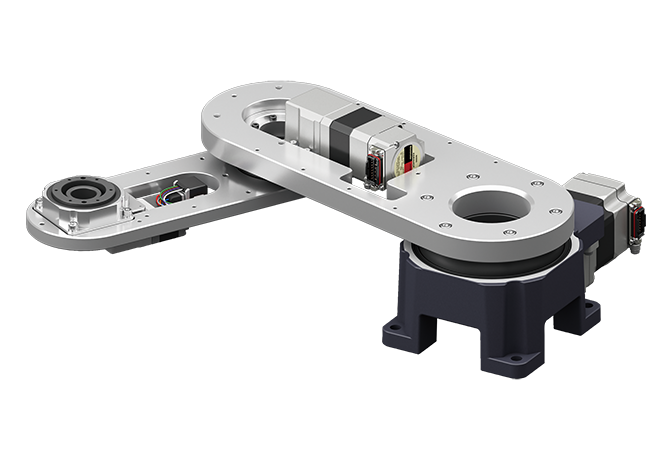

3-Axis SCARA Robot

3-Axis SCARA Robot
  • Able to Approach Tight Spaces
  • Lightweight and Flat, With a Mass of 7.6 kg and a Height of 140 mm
  • Maximum Reach 410 mm, Payload 3 kg
  • The Third Arm Can be Freely Customized to Fit the Equipment

Controllers

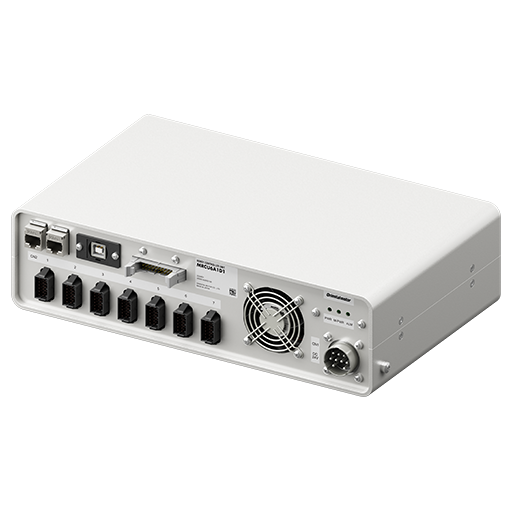

Robot Controller Unit MRCU

MRCU
  • Robot Controllers and AZ Series Drivers (up to 8 axes) in One Package
  • Compact Size like A4
  • Easy Wiring Reducing the Risk of Incorrect Wiring

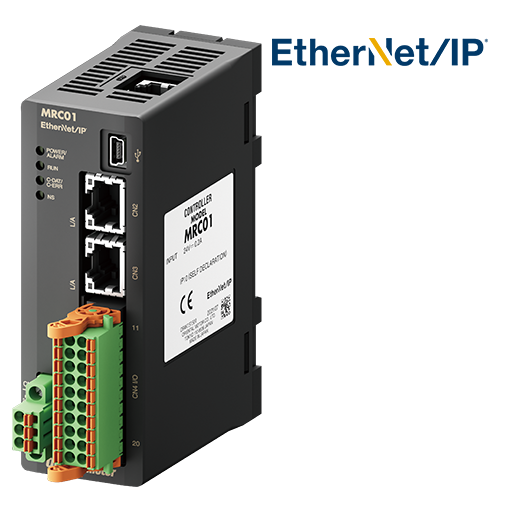

Robot Controller MRC01

MRC01
  • Easy Introduction and Control of Robots
  • Easy Setup with Programming Software
  • Vertical/Horizontal Articulated, Cartesian Robot Control Possible

Mobile Robot Controller MVC01

MVC01
  • Equipped With a Driving Control Function for AGV/AMR Transport Robots
  • Support From Start-Up to Maintenance With Dedicated PC Software
  • Output Gyro Odometry With Built-In IMU
  • Can be Combined With BLV-R Series

Electric Lifting Columns EL Series

Electric Lifting Columns EL Series

EL Series
  • Lifting Columns that Expand the Operating Range for Robots
  • Shorten Equipment Design, Assembly, and Start-up Time
  • High Rigidity and High Accuracy
  • Stroke 50/100/200/300 mm
