Compact Electric Cylinders DR Series
DR28R2.5B03-AZAKD
Actuator
| Produktklassifikation | Produktname | Preis | Versand |
|---|---|---|---|
| Actuator | DR28R2.5B03-AZAKD | 1,052.00 € | Up to 5 pcs Estimated Ship 5weeks |
• Specifications and various data of combination products may be shown on the combination product page. Please check the page of the combination product.
Notice: The shipping date refers to the time of dispatch from the warehouse in Düsseldorf/Germany. Shipments with 30 pieces or more will require air freight.
Inklusive
- Compact Electric Cylinder: None
Spezifikationen

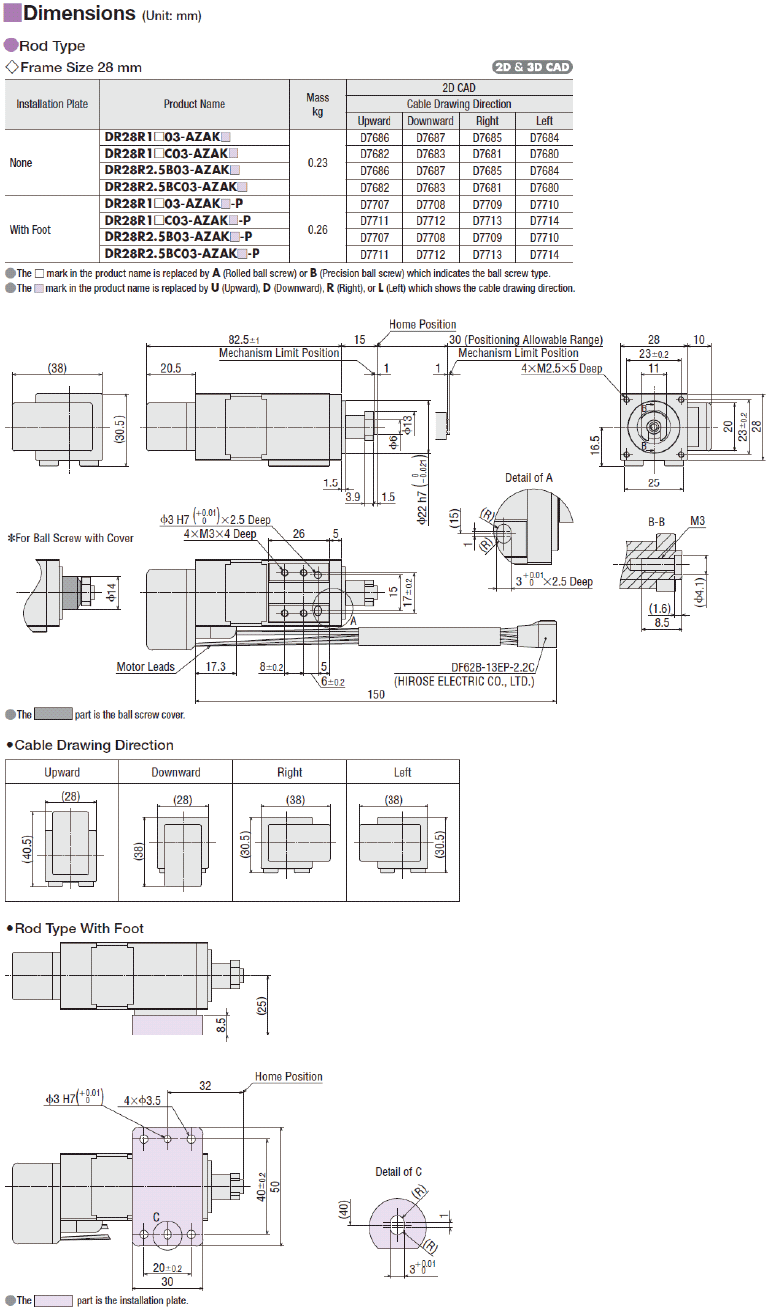

Abmessungen
Daten-Download
Weitere Spezifikationen
General Specifications
| Compact Electric Cylinders | Driver | |||
|---|---|---|---|---|
| Thermal Class | 130(B) | - | ||
| Operating Environment (When operating) |
Ambient Temperature | 0~+40 °C (Non-freezing)* | 0~+50 °C (Non-freezing) | |
| Ambient Humidity | 85 % max. (Non-condensing) | |||
| Atmosphere | No corrosive gases or dust. No exposure to water, oil or other liquids. | |||
| Degree of Protection | － | IP10 IP20 for AZD-KED2, AZD-KEP2 and AZD-KPN2 |
||
- *According to Oriental Motor’s measurement conditions
Standards
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with regulations and standards for each of our product series can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.
