αSTEP Battery-Free Built-In Absolute Encoder AZ Series

AZM48AKH-PLE40-40

Produktinformationen gesammelt ausdrucken
AZM48AKH-PLE40-40

Motor
Produktklassifikation Produktname Preis Versand
Motor AZM48AKH-PLE40-40 591.00 € Bitte kontaktieren Sie uns für Details.
• This product is a stepping motor only. A combination of driver circuit and connection cable is required for driving.
Notice: The shipping date refers to the time of dispatch from the warehouse in Düsseldorf/Germany. Shipments with 30 pieces or more will require air freight.

Inklusive

  • Motor: None

Spezifikationen

Kennlinien

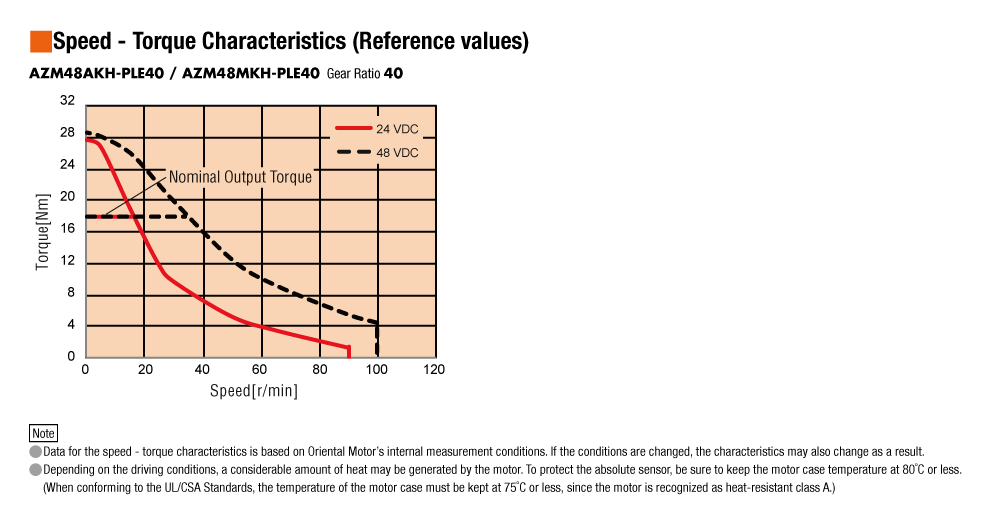

Speed - Torque Characteristics (Reference values)
Speed - Torque Characteristics (Reference values)

Speed - Torque Characteristics (Reference values)

Abmessungen

Motor
Motor

Motor

Daten-Download

Weitere Spezifikationen

General Specifications

Motor Driver
Thermal Class 130(B)
[UL/CSA Standards acquisition is certified at 105 (A).]
 		 −
Insulation Resistance 100 MΩ or more when a 500 VDC megger is applied between the following places.

  • Between case and motor windings
  • Between case and electromagnetic brake windings*1
 100 MΩ or more when a 500 VDC megger is applied between the following places.

  • Between protective earth terminal and power supply terminal
Dielectric Strength

Sufficient to withstand the following for 1 minute:

AZM14, AZM15, AZM24, AZM26

  • Between case and motor windings　
    0.5 kVAC 50 Hz or 60 Hz

AZM46, AZM48, AZM66, AZM69

  • Between case and motor windings　
    1.0 kVAC 50 Hz or 60 Hz
  • Between case and electromagnetic brake windings*1　
    1.0 kVAC 50 Hz or 60 Hz
 −
Operating Environment
(when operating)		 Ambient Temperature 0~+40 °C (Non-freezing) 0~+50 °C (Non-freezing)
Ambient Humidity 85 % max. (Non-condensing)
Atmosphere Cable type: No corrosive gases or dust. No exposure to water, oil or other liquids.
Connector type: No corrosive gases or dust. No exposure to oil or other liquids.		 No corrosive gases or dust. No exposure to water, oil or other liquids.
Degree of Protection

Cable type (except for mounting surface and connector part):
AZM14, AZM15, AZM24, AZM26, AZM46 *2
, AZM48 *2 , AZM66 *2 , AZM69 *2: IP40
AZM46, AZM48, AZM66, AZM69: IP66

Connector type (when the connection cable is connected.
  Excluding the mounting surface and connector parts on the driver side of the connection cable): IP66


 IP10
Stop Position Accuracy AZM14, AZM15, AZM24, AZM26: ±5 arcmin (±0.083˚)
AZM46, AZM48: ±4 arcmin (±0.067˚)
AZM66, AZM69: ±3 arcmin (±0.05˚)
Shaft Runout 0.05 T.I.R. (mm)*3 −
Concentricity of Installation Pilot to the Shaft
 		 0.075 T.I.R. (mm)*3 −
Perpendicularity of Mounting Surface to the Shaft
 		 0.075 T.I.R. (mm)*3 −
Multi-Rotation Detection Range in Power OFF State

 AZM14, AZM15, AZM24, AZM26: ±450 rotations (900 rotations)
AZM46, AZM48, AZM66, AZM69: ±900 rotations (1800 rotations)
*1
(Only for types with electromagnetic brake)
*2
When the motor cable shape is horizontal pull-out
*3
T.I.R. (Total Indicator Reading): The total dial gauge reading when the measurement section is rotated once centered on the reference axis center.

Note

  • Disconnect the motor and driver when measuring insulation resistance, or conducting a dielectric strength test.
    Also, do not conduct these tests on the ABZO sensor part of the motor.
Disconnect the motor and driver when measuring insulation resistance, or conducting a dielectric strength test. Also, do not conduct these tests on the ABZO sensor part of the motor.
