Compact Electric Cylinders DRLII Series/CVD Series RS-485 Communication Type
DRLM28-03A1PN-K+CVD5BR-KR
| Product Classification | Product Name | List Price | Shipping Date |
|---|---|---|---|
| Actuator | DRLM28-03A1PN-K | 516.00 € | Up to 5 pcs Estimated Ship 4weeks |
| Control Circuit | CVD5BR-KR | 187.00 € | Up to 30 pcs Estimated Ship 4weeks |
Included
- Actuator: Connection Cable, Operating Manual
Control Circuit: None
Specifications

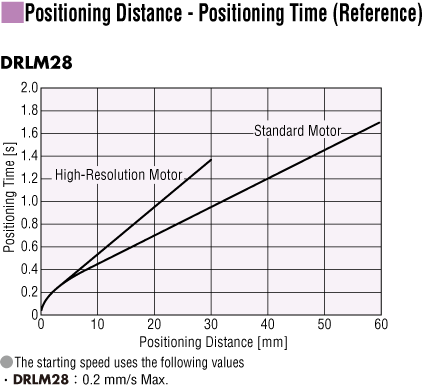

Characteristics

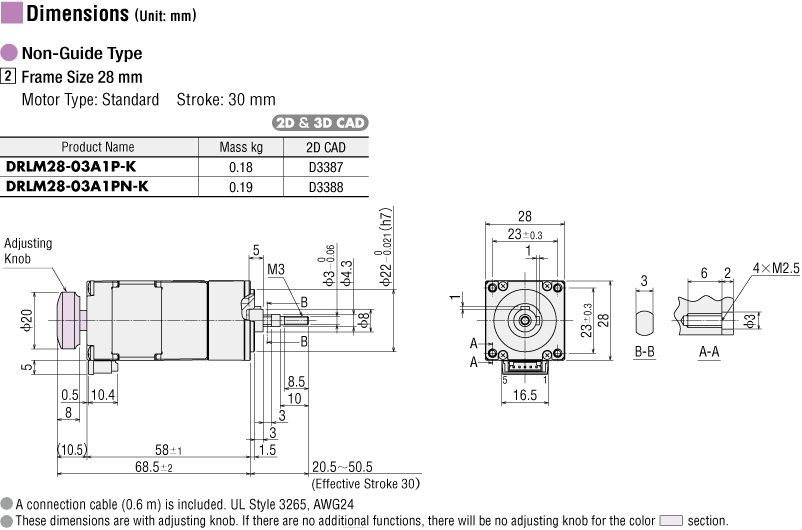

Dimensions
Data Download
Other Specifications
General Specifications
| Compact Electric Cylinders | Driver | ||
|---|---|---|---|
| Thermal Class | 130(B) | - | |
| Insulation Resistance |
100 MΩ or more when a 500 VDC megger is applied between the following places:
|
- | |
| Dielectric Strength |
Sufficient to withstand the following for 1 minute.
DRLM20□, DRLM28□, DRLM42□ (High resolution):
0.5 kVAC 50 Hz or 60 Hz
DRLM42□, DRLM60□ (High resolution):
1.0 kVAC 50 Hz or 60 Hz
DRLM60□:
1.5 kVAC 50 Hz or 60 Hz
|
- | |
| Operating Environment (When operating) |
Ambient Temperature | 0~+40 °C (Non-freezing) DRLM20V and DRLM28V can range from 5 to 40 °C. |
0~+50 °C (Non-freezing) |
| Ambient Humidity | 85 % max. (Non-condensing) | ||
| Atmosphere | No corrosive gases or dust. No exposure to water, oil or other liquids. | ||
Circuit General Specifications
| Item | Specifications | |
|---|---|---|
| Interfaces | Control Input | 7 points, photocoupler |
| Control output | 2 points, photocoupler and open-collector | |
| Field Network | Modbus RTU (RS-485 communication) | |
| Operating Environment (In operation) | Ambient Temperature | 0∼+50 °C (Non-freezing) |
| Ambient Humidity | 85 % max. (Non-condensing) | |
| Atmosphere | No corrosive gases or dust. No exposure to water, oil or other liquids. | |
RS-485 Communication Specifications
| Electrical Characteristics | EIA-485 Compliant RS-485 Communication Type: Use twisted-pair wires.The max. total extension length is 10 m. Fully Closed-Loop Control Type: Use twisted-pair wires.The max. total extension length is 3 m. |
|---|---|
| Mode | Half duplex Asynchronous mode (Data: 8 bits, Stop Bit: 1 bit or 2 bits, Parity: none, even, or odd) |
| Transmission Rate | 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps, and 230400 bps are available. |
| Protocol | Modbus RTU Mode |
| Connection Type | A maximum of 31 units can be connected to a single host controller. |
Standards
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with regulations and standards for each of our product series can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.
