Name: PK264JA | PKP Series/PK Series (2-Phase) | Oriental Motor
Price: 91.00 EUR

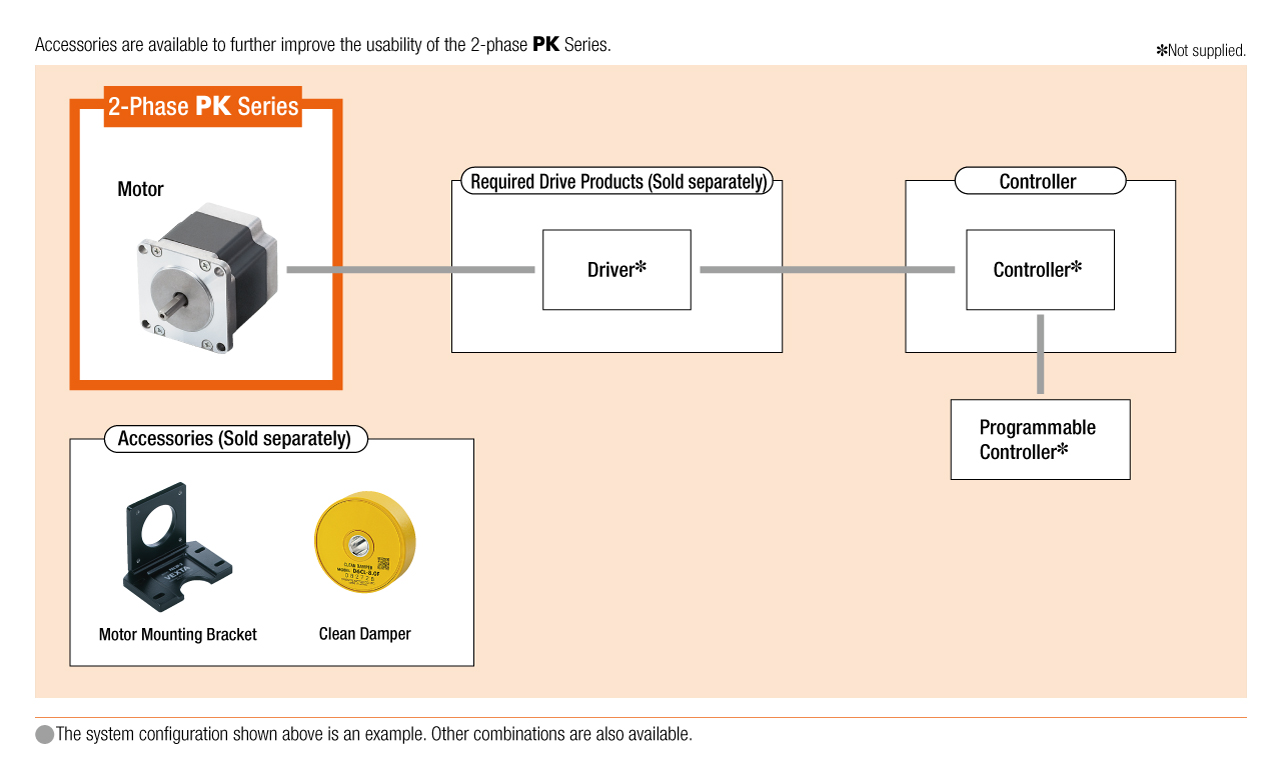

Spezifikationen

Kennlinien

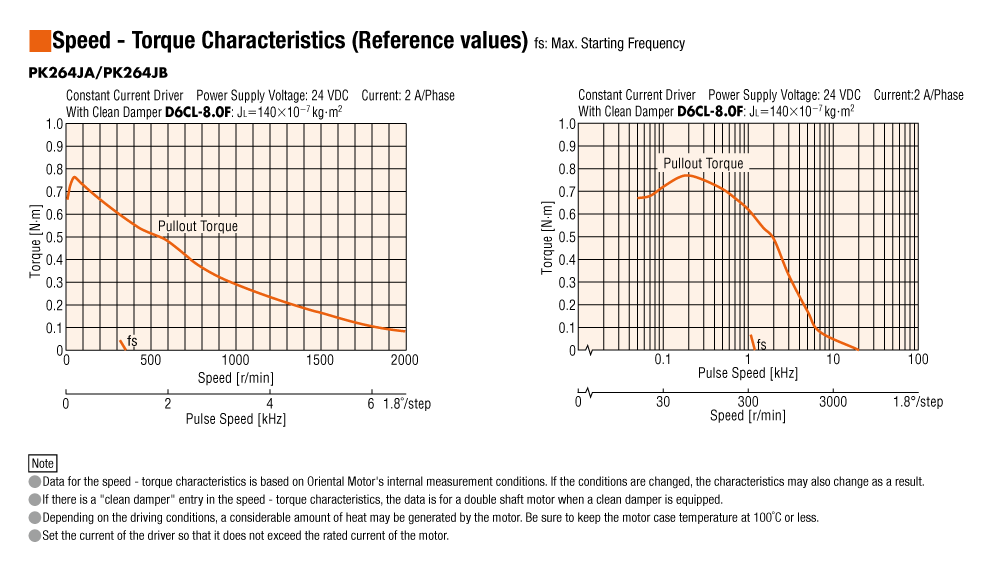

Characteristics Diagram

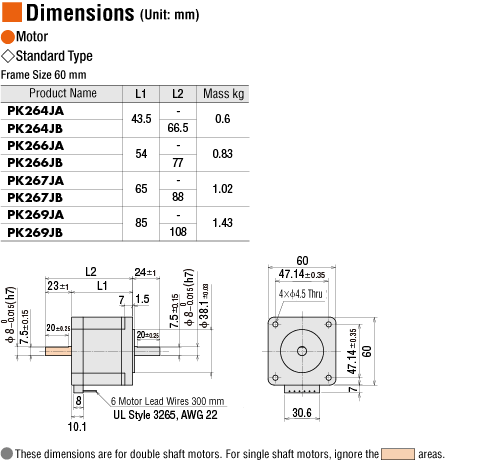

Abmessungen

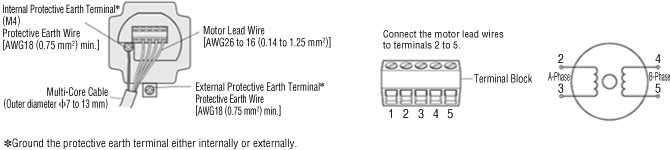

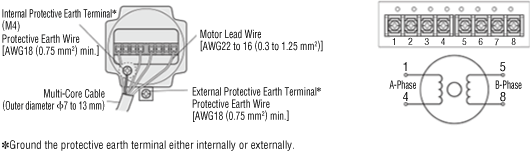

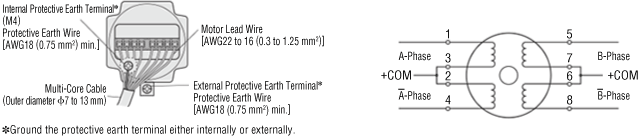

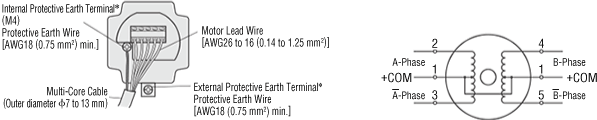

Motor

Daten-Download

Weitere Spezifikationen

General Specifications

Specifications		Motor
Thermal Class		130 (B) [Standard Type With Terminal Box: UL/CSA Standards is approved at 105(A).]
Insulation Resistance		The measured value is 100 MΩ min. when a 500 VDC megger is applied between the windings and the case under normal ambient temperature and humidity.
Dielectric Strength		Under normal ambient temperature and humidity, no abnormalities were observed even if 1.0 kV at 50 Hz or 60 Hz is applied between the windings and the case of the motor for 1 minute. (0.5 kV for frame sizes of 42 mm max., and 1.5 kV for standard type with terminal box PK29□D)
Operating Environment (In operation)	Ambient Temperature	-10~+50 °C (non-freezing)
	Ambient Humidity	85 % max. (Non-Condensing)
	Atmosphere	No corrosive gases or dust Should not be exposed to water or oil. (Standard Type with Terminal Box: No corrosive gases. Should not be exposed to oil.)
Temperature Rise		Unipolar: 2-Phase excitation at rated voltage, winding temperature rise 80 °C max. at standstill state (Resistance change method) Bipolar: 2-Phase excitation at rated current, winding temperature rise 80 °C max. at standstill state (Resistance change method) Aluminum heat radiation plates are attached to the following motors. PK24□D:115 × 115 × 5 mm PK26□D:250 × 250 × 10 mm *PKE24□D and PK26□JD are the same specification as unipolar.
Stop Position Accuracy^*1		±3 arcmin (±0.05˚), PK26□J, PK26□JD: ±2 arcmin (±0.034˚)
Shaft Runout		0.05 T.I.R. (mm)^*4
Radial Play^*2		0.025 mm Max. (Load 5 N)
Axial Play^*3		0.075 mm max. (Load 10 N) [Load 1 N for PK21□, Load 2.5 N for PK22□]
Concentricity of Installation Pilot to the Shaft		0.075 T.I.R. (mm)^*4
Perpendicularity of Mounting Surface to the Shaft		0.075 T.I.R. (mm)^*4

*1: This value is for full step under no load. (The value changes with the size of the load.)
*2: Radial Play: Displacement in shaft position in the vertical direction when a 5 N load is applied perpendicular to the tip of the motor shaft.
*3: Axial Play: Displacement in shaft position in the axial direction when a 10 N (1 N for PK21□, 2.5 N for PK22□) load is applied to the motor shaft in the axial direction.
*4: T.I.R. (Total Indicator Reading): The total dial gauge reading when the measurement section is rotated 1 revolution centered on the reference axis center.

Note

Disconnect the motor and driver when measuring insulation resistance, or conducting a dielectric strength test.

Rotation Direction

This indicates the rotation direction when viewed from the output shaft side.
The rotation direction of the gearhead output shaft relative to the standard type motor output shaft varies depending on the gear type and gear ratio. Please check the following table.

Type	Gear Ratio	Rotation Direction as Viewed From the Motor Output Shaft Side
TS Geared Type	3.6, 7.2, 10	Same direction
TS Geared Type	20, 30	Opposite direction
TH Geared Type Frame size 28 mm	7.2, 10	Opposite direction
TH Geared Type Frame size 28 mm	20, 30	Same direction
TH Geared Type Frame size 42 mm, 60 mm, 90 mm	3.6, 7.2, 10	Same direction
TH Geared Type Frame size 42 mm, 60 mm, 90 mm	20, 30	Opposite direction
SH Geared Type Frame size 28 mm	7.2, 36	Same direction
SH Geared Type Frame size 28 mm	9, 10, 18	Opposite direction
SH Geared Type Frame size 42 mm, 60 mm	3.6, 7.2, 9, 10	Same direction
SH Geared Type Frame size 42 mm, 60 mm	18, 36	Opposite direction
SH Geared Type Frame size 90 mm	3.6, 7.2, 9, 10, 18	Same direction
SH Geared Type Frame size 90 mm	36	Opposite direction
CS Geared Type	5, 10, 15, 20	Same direction
FC Geared Type PS Geared Type PN Geared Type HPG Geared Type	Overall gear ratio	Same direction
Harmonic Geared Type	50, 100	Opposite direction

Permissible Radial Load and Permissible Axial Load

Unit: N

Type	Motor Frame Size	Motor Product Name	Gear Ratio	Permissible Radial Load					Permissible Axial Load
				Distance From Shaft End [mm]
				0	5	10	15	20
High-Resolution Type ／ High-Resolution Type With Encoder ／ High-Resolution Type With electromagnetic brake	42 mm	PKP243, PKP244, PKP544, PKP546	-	20	25	34	52	-	10
	56.4 mm	PKP264, PKP266, PKP268		54	67	89	130	-	20
	60 mm	PKP564, PKP566, PKP569		90	100	130	180	270	20
Standard Type ／ Standard Type With Encoder ／ Standard Type With electromagnetic brake	20 mm	PKP213, PKP214		12	15	-	-	-	3
	28 mm	PKP223, PKP224, PKP225, PKP523, PKP525		25	34	52	-	-	5
	35 mm	PKP233, PKP235		20	25	34	52	-	10
	42 mm	PKP243, PKP244, PKP245, PKP246, PKP544, PKP546		20	25	34	52	-	10
	50 mm	PK256, PK258		54	67	89	130	-	20
	56.4 mm	PKP264, PKP266, PKP268		61	73	90	110	160	20
	60 mm	PKP564, PKP566, PKP569		63	75	95	130	190	20
		PKP262		20	25	34	-	-	5
		PK264J, PK266J, PK267J, PK269J		50	60	75	100	150	20
	85 mm	PK296, PK299, PK2913, PKP296, PKP299, PKP2913		260	290	340	390	480	60
SH Geared Type	28 mm	PKP223	7.2, 9, 10, 18, 36	15	17	20	23	-	10
	42 mm	PKP243	3.6, 7.2, 9, 10, 18, 36	10	15	20	30	-	15
	60 mm	PKP264	3.6, 7.2, 9, 10	30	40	50	60	70	30
	60 mm	PKP264	18, 36	80	100	120	140	160	30
	90 mm	PK296	3.6, 7.2, 9, 10, 18, 36	220	250	300	350	400	100
