Q.I am using AZ Series multi-axis drivers and Mitsubishi Electric Corporation PLC. I changed settings to return-to-home mode using "Driver Return-to-Home Mode." The sensor uses the PLC input, but how should I set the sensor's logic?
Product Name
Drivers (SSCNETIII/H) manufactured by ORIENTAL MOTOR CO., LTD.: AZD2A-KS3, AZD2B-KS3, AZD3A-KS3, AZD4A-KS3
PLC (Q Series Simple Motion Unit) manufactured by Mitsubishi Electric Corporation: QD77MS2, QD77MS4, QD77MS16
Please make the following settings using the Oriental Motor support software MEXE02 and Mitsubishi Electric Co.’s simple motion unit setting tool.

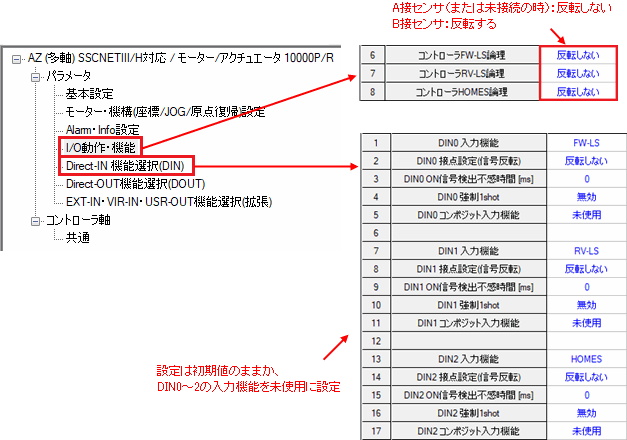

Settings in Support Software MEXE02

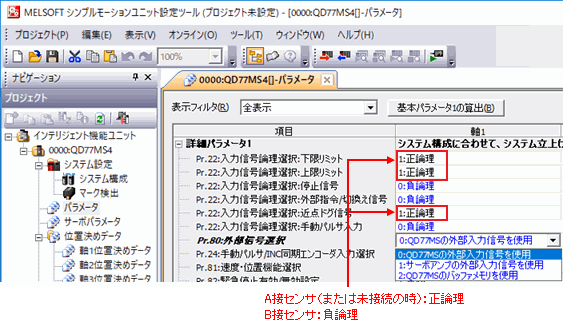

Settings in the Simple Motion Unit Setting Tool
Product Category: αSTEP , Network Compatible Products and Controllers
Model and Series: AZ Series multi-axis drivers , electric actuators with AZ Series equipped multi-axis drivers
Description: How to Use/Setting Method
FAQ No.: 514
