Space Heater With Fans HMA Series

HMA200F-4

Print Product Information All at once
HMA200F-4

Space Heater with Fan

Product Classification Product Name List Price Shipping Date
Space Heater with Fan HMA200F-4 Not available for purchase

Notice: The shipping date refers to the time of dispatch from the warehouse in Düsseldorf/Germany. Shipments with 30 pieces or more will require air freight.

Included

  • Heater, DIN Rail Mounting Kit (DIN Rail Mounting Bracket, Screw), Operating Manual

Specifications

Characteristics

Characteristics Diagram

Characteristics Diagram

Dimensions

Dimensions (Body)

Dimensions (Body)

Data Download

Other Specifications

General Specifications

Item Specifications
Insulation Resistance After continuous operation at normal ambient temperature and humidity, the measured value using a 500 VDC megger between the terminal and the frame, and the terminal and DIN rail is 10 MΩ min.
(However, there is a possibility of insulation deterioration due to moisture absorption. In case of insulation deterioration, power the product at a voltage lower than the rated voltage, or dry it in a drying oven until the insulation resistance recovers before use.)
Dielectric Strength No abnormality is observed even with an application of 1.25 kVAC at 50 Hz between the terminal and the frame for 1 minute after continuous operation, at normal ambient temperature and humidity.
Operating Voltage Range ±10 % (for each voltage)
Thermal Class Cooling fans part UL/CSA Standards: 105 (A), EN Standards: 120 (E)
Overheat Protection Heater Section: Thermal protector
Cooling Fan Section: Impedance protected
Operating Environment Listed in a separate box
Storage Conditions Listed in a separate box
Color Heater section Heat Sink: Aluminum die cast Terminal Block: Plastic
Cooling Fan Section Frame: Aluminum Blade: Black
Materials Heater section Heat Sink: Aluminum die cast Terminal Block: Plastic
Cooling Fan Section Frame: Aluminum die cast, Blade: Polycarbonate (Flammability Classification: V-0)

Operating Environment, Storage Condition

Operating Environment*1 Storage Conditions*1*3 Environmental Standards
Ambient Temperature*2 Ambient Humidity Ambient Temperature*2 Ambient Humidity
-30~+30 °C 85 % max. (non-condensing) -40~+70 °C 85 % max. (non-condensing) Compliant with ETSI Standards*4
*1
The operating and storage environment assumes conditions of being free from condensation, freezing, and vibration other than that of the fan, and external force.
*2
Cannot be used in a temperature-controlled environment at -10 °C max., such as in a freezer.
*3
The value for storage condition applies to short periods such as the period during transport.
*4
Operating environment and storage conditions are in compliance with the following environmental standards.
ETSI EN 300 019-2-1 V2.1.2 (2000-09) Class 1.3E Storage
ETSI EN 300 019-2-2 V2.1.2 (1999-09) Class 2.3 Transportation
ETSI EN 300 019-2-3 V2.2.2 (2003-04) Class 3.4 Stationary use
Test Name Environmental Standards Conditions and Test Content
Heat Cycle Test ETSI EN 300 019-2-1
ETSI EN 300 019-2-2
ETSI EN 300 019-2-3		 -40~+30 °C 5 cycles Temperature Gradient: 1.0 °C/min Low Temperature (-40 °C) High Temperature (+30 °C) Hold Time: 3 hours
No abnormalities after test
Low Temperature Exposure Test -45 °C Left 72 hours No abnormalities after test
  • *Environmental Standard ETSI
    ETSI, officially known as the European Telecommunications Standards Institute, is a standards organization established to produce standard specifications for telecommunications in Europe.
    The ETSI EN 300 019 Series is a standard based on IEC 60721, which defines the environmental conditions for equipment, and specifies specific definitions of environmental conditions and test conditions.

Standards

Hazardous Substances

The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).

For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.

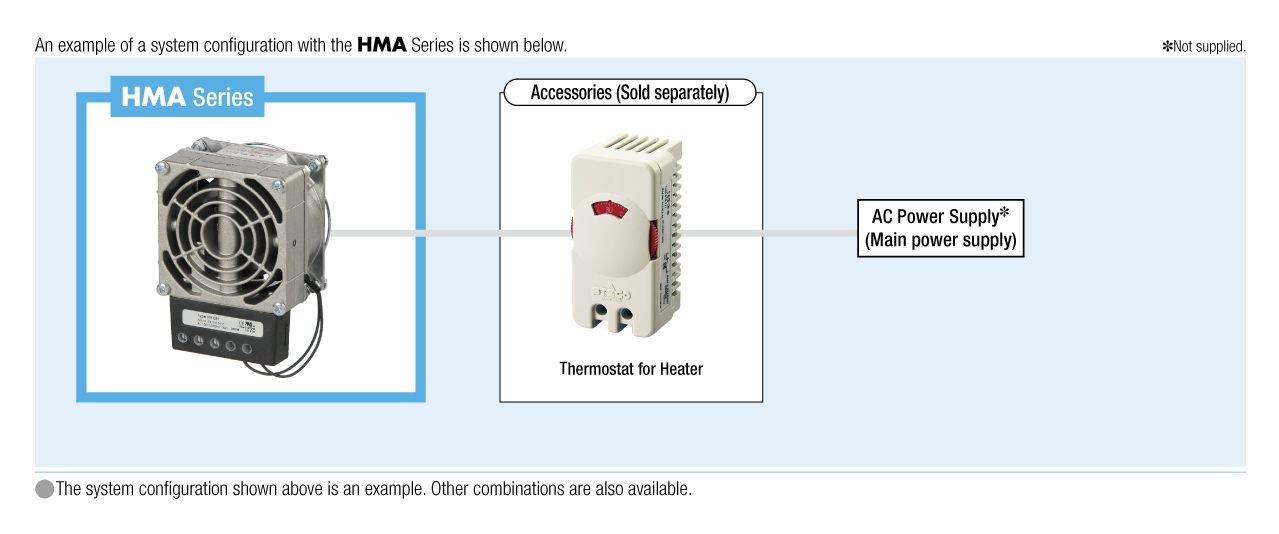

System Configuration

System Configuration

Related Products

Thermostat for Heater

Products Features

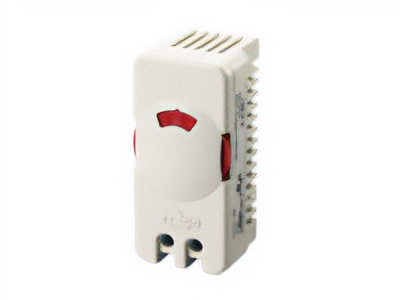

AM2-XB1
AM2-XB1
Features

Automatically operates and stops heaters in response to temperature changes in the equipment.
This helps improve the equipment's "environmental" performance in terms of energy savings, noise reduction, etc.
(The contacts are reversed from those for cooling fans.)

  • Setting temperature range 0~+60 °C (setting error ±5 °C)
  • Easy to set temperature with thumbwheel dial
  • Designed for optimal air flow circulation, enabling stable operation
  • Compact size
    Width 33 mm × Height 70 mm × Depth 42.5 mm
  • *For the number of applicable heaters that can be used, click here.
