Hollow Rotary Actuators DGII Series

DG130-RKSAA-1

Print Product Information All at once
DGM130-5PKEAC RKSD507-A

Actuator/Control Circuit

  This product is currently no longer available for sale.
Product Classification Product Name List Price Shipping Date
Actuator / Control Circuit DG130-RKSAA-1 - Discontinued Product
(31.3.2020 discontinued)

Included

  • Actuator, Circuit, Cable for motor (1 m), I/O Signal Connector, Connector for Pulse Input, Connector for Main Power Input Terminal, Operating Manual

Specifications

Other Specifications

The Settings of Resolution of output table (minimum step angle)

Step Angle Setting Switch

General Specifications (Actuator)

Installed Motor RKII Series Equipped AC Input AR Series Equipped DC Input
Thermal Class 130 (B)
Insulation Resistance*1
  • Between case and motor windings
  • Between case and motor/sensor windings
Dielectric Strength*2
  • Between case and motor windings

1.5 kVAC, 50 Hz or 60 Hz
  • Between case and motor/sensor windings
    0.5 kVAC, 50 Hz or 60 Hz
Operating Environment
(When operating)		 Ambient Temperature 0~+50 °C (Non-freezing)
When home-sensor set (accessory) is installed: 0~+40 °C (Non-freezing)
Ambient Humidity 85 % max. (Non-condensing)
Atmosphere No corrosive gases or dust. No exposure to water, oil or other liquids.
*1
The measured value is 100 MΩ min. when a 500 VDC megger is applied between 2 points in the table.
*2
No abnormality is observed after 1 minute of application under the conditions shown in the table.

Note

  • Do not perform the insulation resistance test or dielectric strength test while the actuator and circuit are connected.

Circuit General Specifications


 Built-in Controller Type Pulse Input Type
Insulation Resistance

100 MΩ or more when a 500 VDC megger is applied between the following places:

  • Between protective earth terminal and power supply terminal
  • Between I/O signal terminal and power supply terminal
Dielectric Strength Sufficient to withstand the following for 1 minute:
  • Between protective earth terminal and power supply terminal
    1.5 kVAC at 50 Hz or 60 Hz
  • Between I/O signal terminal and power supply terminal
    1.8 kVAC at 50 Hz or 60 Hz
  • Between protective earth terminal and power supply terminal
    1.8 kVAC at 50 Hz or 60 Hz
  • Between I/O signal terminal and power supply terminal
    1.9 kVAC at 50 Hz or 60 Hz
Operating Environment
(When operating)		 Ambient Temperature 0~+55 °C* (Non-freezing)
Ambient Humidity 85 % max. (Non-condensing)
Atmosphere No corrosive gases or dust. No exposure to water, oil or other liquids.
  • *When installing a heat sink equivalent to an aluminum plate min. 200×200 mm, thickness 2 mm

Note

  • Do not perform the insulation resistance test or dielectric strength test while the actuator and circuit are connected.

System Configuration

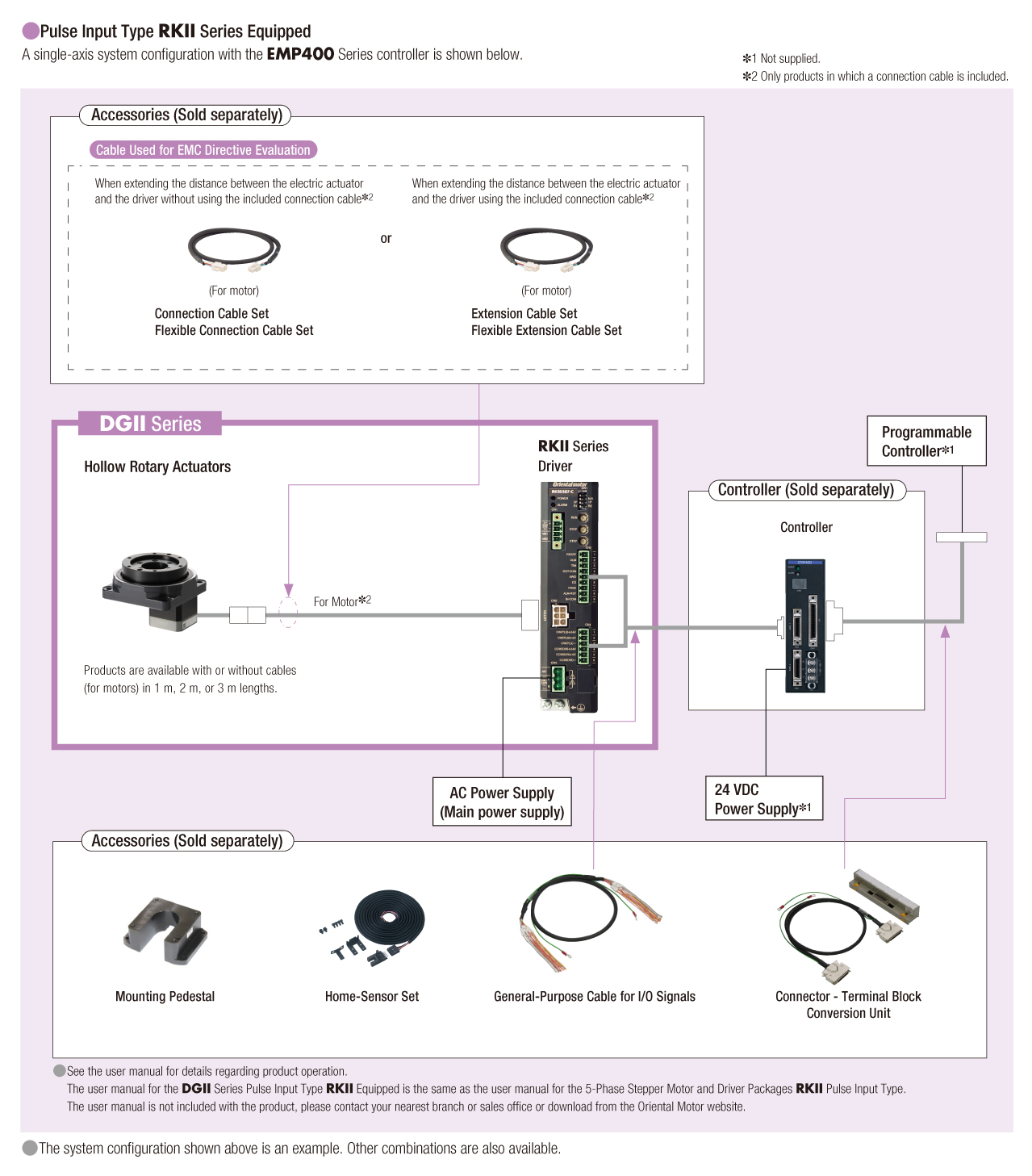

System Configuration
