General Specifications

Item	Specifications
Insulation Resistance	After rated operation at normal ambient temperature and humidity, the measurement between the coils and the case is 100 MΩ min. using a 500 VDC megger.
Dielectric Strength	No abnormality is observed even with an application of 1.5 kVAC at 50 Hz between the coils and the case for 1 minute after rated operation at normal ambient temperature and humidity.
Temperature Rise	After rated operation at normal ambient temperature and humidity, the measurement value of the motor surface temperature rise is 60 °C max. (50 °C max. for 60 W and 90 W type) using the thermometer method.
Thermal Class	120 (E)
Operating Ambient Temperature	-10~+50 °C (non-freezing)
Operating Ambient Humidity	85 % max. (Non-condensing)

Permissible Radial Load and Permissible Axial Load of Round Shaft Type

Permissible Radial Load

Motor		Permissible Radial Load N
Frame Size □ (mm)	Output Shaft Diameter φ (mm)	From Shaft End 10 mm	From Shaft End 20 mm
42	5	40	-
60	6	50	110
70	6	40	60
80	8	90	140
90	10	140	200
	12	240	270

Permissible Axial Load

Avoid axial load as much as possible. If an axial load is unavoidable, keep it at half or less of the motor mass.

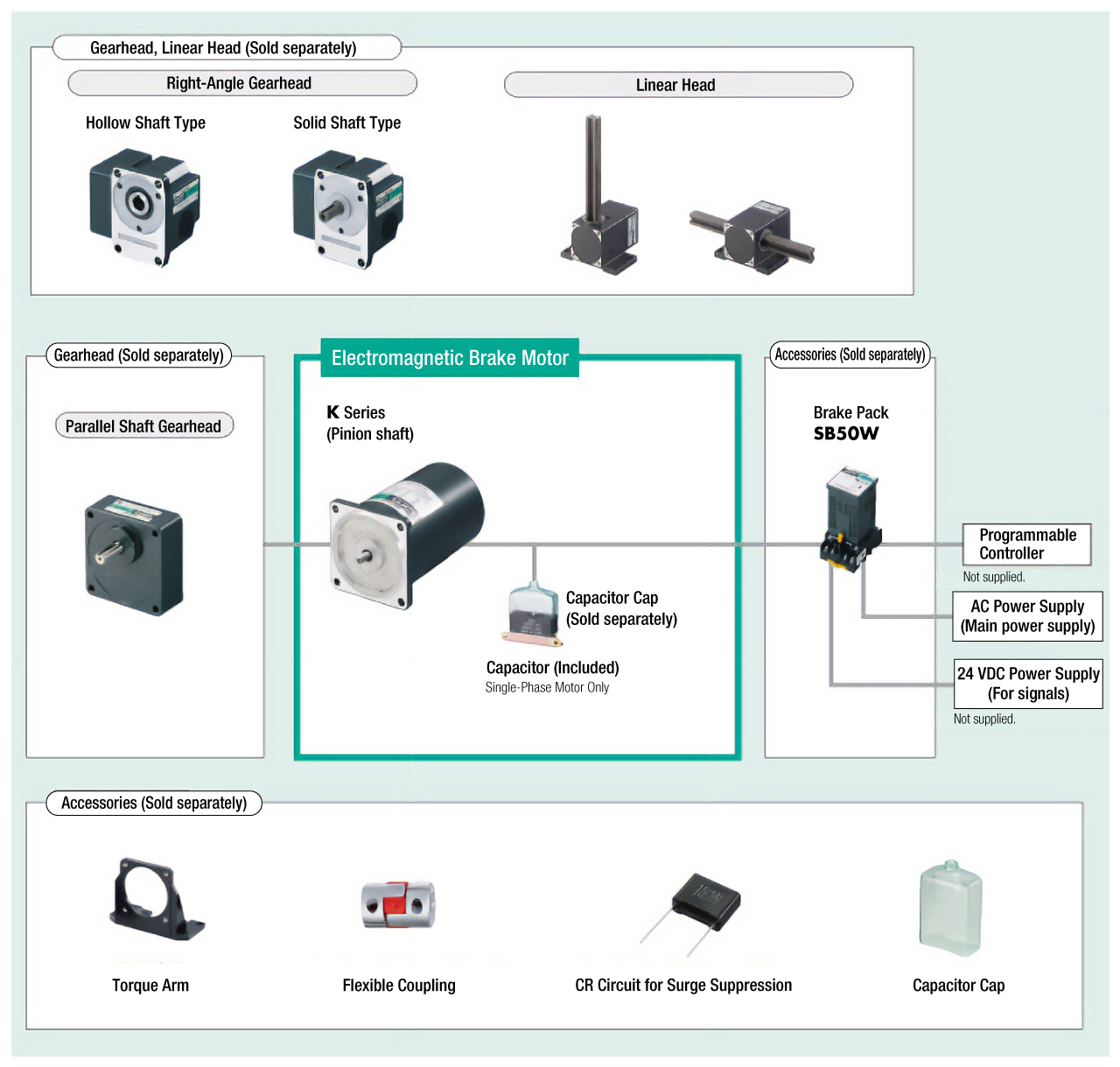

System Configuration
