Q.I am using AZ Series multi-axis drivers and Mitsubishi Electric Corporation PLC. I would like to use a rotation table for position coordinate management from 0~360˚. Can the position be cleared to 0˚ automatically when the table rotates 1 revolution?
Product Name
Drivers (SSCNETIII/H) manufactured by ORIENTAL MOTOR CO., LTD.: AZD2A-KS3, AZD2B-KS3, AZD3A-KS3, AZD4A-KS3
PLC (Q Series Simple Motion Unit) manufactured by Mitsubishi Electric Corporation: QD77MS2, QD77MS4, QD77MS16

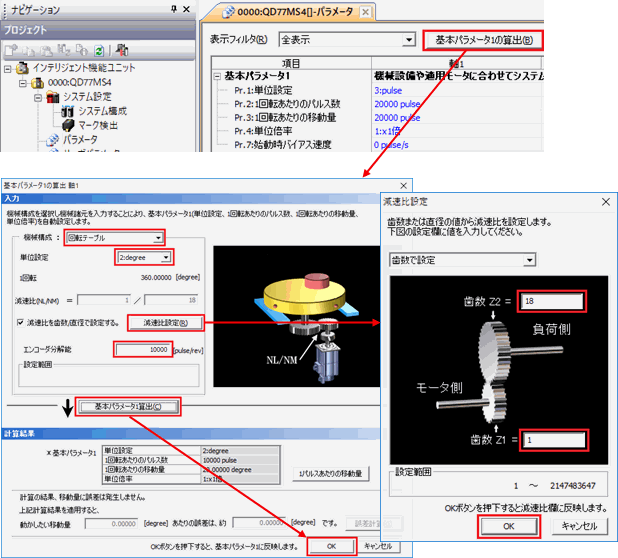

By setting the parameters with the simple motion unit setting tool by Mitsubishi Electric Corporation, the position can be automatically cleared to 0˚ with 1 table revolution.
- Example)
-
DGII Series
(Gear ratio of hollow rotary section: 18)

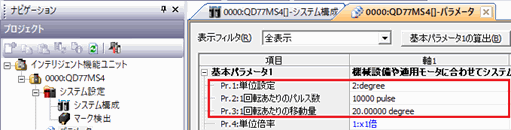

[Reflection result]
Note
When [degree] is selected for [Unit setting], set the gear ratio to 3.6 min.
If the gear ratio is less than 3.6, an error will occur due to the specifications of the simple motion unit.
Product Category: αSTEP , Network Compatible Products and Controllers
Model and Series: AZ Series multi-axis drivers , electric actuators with AZ Series equipped multi-axis drivers
Description: How to Use/Setting Method
FAQ No.: 507
