Q.I am using an AZ Series multi-axis driver and a Mitsubishi Electric Co. PLC. I want to make mm and degree settings, what should I do?
Product Name
Drivers (SSCNETIII/H) manufactured by ORIENTAL MOTOR CO., LTD.: AZD2A-KS3, AZD2B-KS3, AZD3A-KS3, AZD4A-KS3
PLC (Q Series Simple Motion Unit) manufactured by Mitsubishi Electric Corporation: QD77MS2, QD77MS4, QD77MS16
The mm and degree settings can be set with the simple motion unit setting tool by Mitsubishi Electric Co.
- Example)
-
Ball screw horizontal with 6 mm mechanism lead

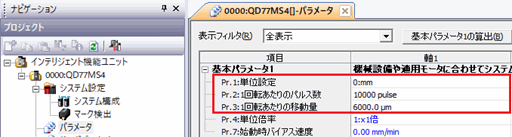

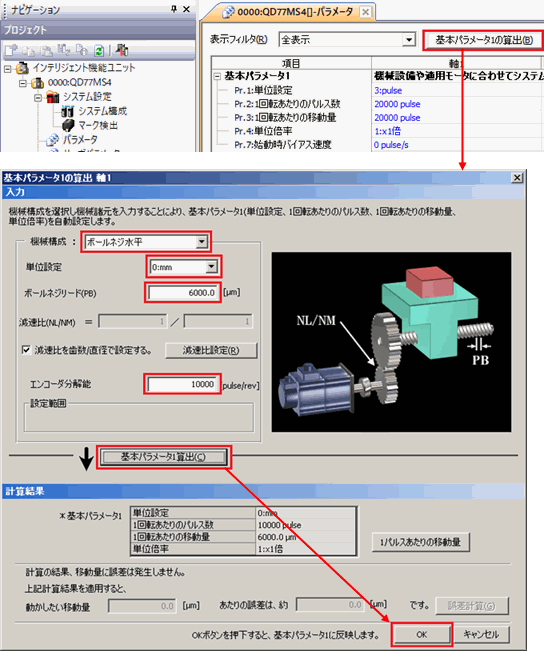

Please set up as shown in the following screen.
[Reflection result]
Product Category: αSTEP , Network compatible products and controllers
Model and Series: AZ Series multi-axis drivers , electric actuators with AZ Series equipped multi-axis drivers
Description: How to Use/Setting Method
FAQ No.: 505
