Brushless Motors BLS Series

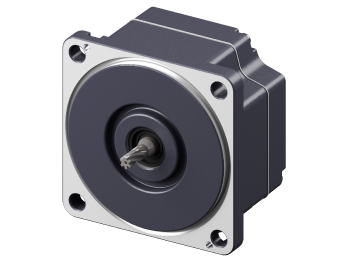

BL2M460KCP-GF

Print Product Information All at once
BL2M460KCP-GF

Motor
Product Classification Product Name List Price Shipping Date
Motor BL2M460KCP-GF €159.00 Up to 5 pcs Estimated Ship 4weeks
• This product is a motor only of the brushless motor. A combination of driver circuit and connection cable is required for driving.
Notice: The shipping date refers to the time of dispatch from the warehouse in Düsseldorf/Germany. Shipments with 30 pieces or more will require air freight.

Included

  • motor: None

Specifications

Dimensions

Motor

Motor

Data Download

Other Specifications

General Specifications

Item Specifications
Insulation Resistance After continuous operation at normal ambient temperature and humidity, the measurement value between the coils and the case is 100 MΩ min. using a 500 VDC megger.
Dielectric Strength No abnormality is observed even with an application of 0.5 kVAC at 50 Hz between the coils and the case for 1 minute after continuous operation at normal ambient temperature and humidity.
Temperature Rise After rated continuous operation at normal ambient temperature and humidity with a heat sink attached*1, the measurement value of the temperature rise on the case surface is 30 °C max. (50 °C max. for the 90 W type) using the thermocouple method.
Operating Environment Ambient Temperature 0 to +40 °C (Non-freezing)
Ambient Humidity 85 % max. (Non-condensing)
Altitude Up to 1000 m above sea level
Atmosphere No corrosive gases or dust. Should not be exposed to water or oil. Cannot be used in a radioactive area, magnetic field, vacuum, or other special environments.
Vibration Must not be subjected to continuous vibration or excessive shock. Conforms to JIS C 60068-2-6, "Sine-Wave Vibration Test Method"
Frequency Range: 10 to 55 Hz, Half Amplitude: 0.15 mm, Sweep Direction: 3 directions (X, Y, Z), Number of Sweeps: 20 times
Storage Conditions*2 Ambient Temperature -25 to +70 °C (Non-freezing)
Ambient Humidity 85 % max. (Non-condensing)
Altitude Up to 3000 m above sea level
Atmosphere No corrosive gases or dust. Should not be exposed to water or oil. Cannot be used in a radioactive area, magnetic field, vacuum, or other special environments.
Thermal Class EN Standards: 120 (E)
Degree of Protection 25 W, 40 W, 90 W: IP40 (Excluding the installation surface and connectors)
30 W, 60 W, 120 W: IP65 (Excluding the installation surface and connectors)
*1
The size of the heat sink (Material: Aluminum) is as follows.
30 W Type: 115 × 115 mm, thickness 5 mm, 25 W, 60 W Type: 135 × 135 mm, thickness 5 mm, 40 W, 90 W, 120 W Type: 200 × 200 mm, thickness 5 mm
The round shaft type should be mounted on a heat sink to keep the motor case surface temperature below 90 °C.
*2
The value for storage condition applies to short periods such as the period during transport.

Note

  • Do not measure insulation resistance or perform a dielectric strength test while the motor and driver are connected.

Standards

Speed - Torque Characteristics

Regulations and Standards Materials

Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)

Explanations of the Global Laws, Regulations and Standards can be found here.

Information about our compliance with safety standards for each of our product models can be found here.

Hazardous Substances

The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).

For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.
