5H30B
Gearhead
| Product Classification | Product Name | List Price | Shipping Date |
|---|---|---|---|
| Gearhead | 5H30B | Not available for purchase | |
Notice: The shipping date refers to the time of dispatch from the warehouse in Düsseldorf/Germany. Shipments with 30 pieces or more will require air freight.
Included
- Gearhead: Mounting Screws, Parallel Key, Safety Cover
Specifications
Dimensions
Gearhead
Other Specifications
Permissible Radial Load and Permissible Axial Load of Gearhead
| Gear Ratio | 10 | 15 | 20 | 30 | 50 | 100 | 200 | ||
|---|---|---|---|---|---|---|---|---|---|
| Permissible Radial Load [N] *1 | Hollow Shaft*2 | 10 mm From Mounting Surface | 415 | 554 | 692 | 923 | 1112 | 1196 | 1291 |
| 20 mm From Mounting Surface | 363 | 484 | 605 | 806 | 971 | 1045 | 1127 | ||
| Solid Shaft | 10 mm From the End of the Output Shaft | 378 | 504 | 630 | 840 | 1011 | 1089 | 1174 | |
| 20 mm From the End of the Output Shaft | 481 | 641 | 802 | 1069 | 1287 | 1385 | 1495 | ||
| Permissible Axial Load [N] | 108 | 147 | 186 | 245 | 294 | 324 | 343 | ||
- *1
- The load position is shown below.
- *2
- For calculations of the radial load from every distance for the hollow shaft type, refer to "Permissible radial load calculation for hollow shaft type" below.

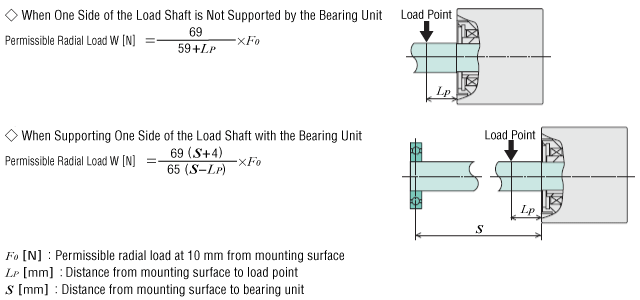

Calculating the Permissible Radial Load for Hollow Shaft Type
The formula for calculating the permissible radial load varies depending on the mechanism.
Standards
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
