AC Speed Control Motors US Series (RoHS non-compliant)

US560-001U

This product is currently no longer available for sale.

Product Classification	Product Name	List Price	Shipping Date
Motor / Control Circuit	US560-001U	-	Discontinued Product (1.4.2015 discontinued)

Motor and Driver Package: Motor, Control Circuit, Capacitor, Mounting Screw for Circuit, Operating Manual

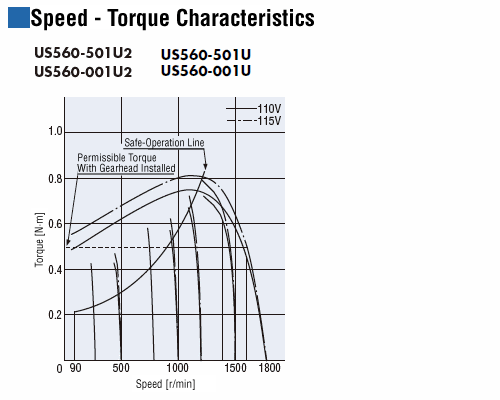

Specifications

Item		Motor	Speed Controller
Insulation Resistance		After rated operation at normal ambient temperature and humidity, the measurement between the coils and the case is 100 MΩ min. using a 500 VDC megger.	After rated operation at normal ambient temperature and humidity, the value measured with a 500 VDC megger between all the pins and the case is min. 100 MΩ.
Dielectric Strength		No abnormality is observed even with an application of 1.5 kVAC at 50 Hz or 60Hz between the coils and the case for 1 minute after rated operation at normal ambient temperature and humidity.	After rated operation at normal ambient temperature and humidity, no abnormality is observed even if 60 Hz, 2.3 kVAC (3.0 kVAC for single-phase 220/230 VAC) is applied between all the pins and the case for 1 minute.
Temperature Rise		After a no load rated operation at normal ambient temperature and humidity, the winding temperature rise measured by the resistance change method with the gearhead or an equivalent heat sink^*attached to the motor is 80 °C max.	−
Overheat Protective Device		The US206 Type is impedance protected. All other motors have a built-in thermal protector (automatic return type). Open: 130±5℃ Return: 82±15℃	−
Operating Environment	Ambient Temperature	-10∼+40°C (Non-freezing)	0∼+40 °C (Non-freezing)
	Ambient Humidity	85 % max. (Non-condensing)
	Altitude	Up to 1000 m above sea level
Thermal Class		130(B)	−
Degree of Protection		US206, US315, US425, US540 Type: IP20 US560, US590 Type: IP40	IP10

Avoid axial load as much as possible. If an axial load is unavoidable, keep it at half or less of the motor mass.
