DC Axial Flow Fans MD Series
MDE825Y-24L
Fan
| Product Classification | Product Name | List Price | Shipping Date |
|---|---|---|---|
| Fan | MDE825Y-24L | €62.00 | Up to 5 pcs Estimated Ship 4weeks |
Notice: The shipping date refers to the time of dispatch from the warehouse in Düsseldorf/Germany. Shipments with 30 pieces or more will require air freight.
Included
- Operating Manual
Specifications

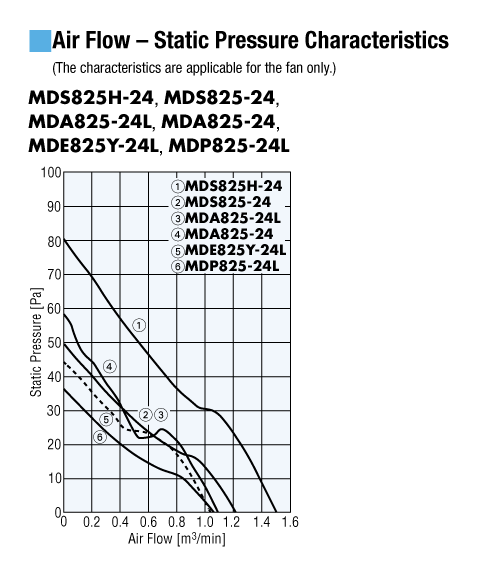

Characteristics

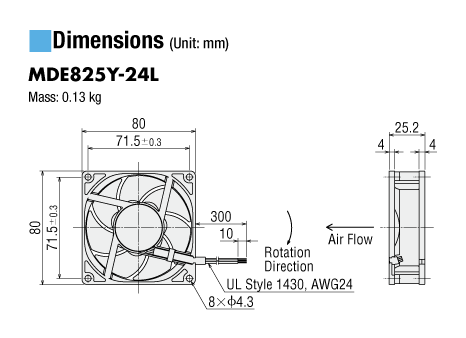

Dimensions
Data Download
Other Specifications
General Specifications
| Item | Specifications |
|---|---|
| Insulation Resistance | Value measured between the windings and the case after continuous operation at normal ambient temperature and humidity. (For details, please refer to the table below.) |
| Dielectric Strength | After continuous operation at normal ambient temperature and humidity, no abnormality is observed when 50 Hz or 60 Hz 500 VAC is applied between the windings and the case for 1 minute. |
| Overheat Protective Device | Built-in burnout prevention circuit |
| Operating Ambient Temperature | Non-freezing/non-condensing. (For details, please refer to the table below.) |
| Operating Ambient Humidity | non-condensing (For details, please refer to the table below.) |
| Thermal Class | UL/CSA Standards: 105 (A), EN Standards: 120 (E) |
Insulation resistance, operating ambient temperature, operating ambient humidity
| Type | Product Name | Insulation Resistance | Operating Ambient Temperature | Operating Ambient Humidity |
|---|---|---|---|---|
| S Type | MDS625H-24 | Min. 10 MΩ as a value measured by a 500 VDC megger | -20~+60 °C | 85 % max. |
| MDS825H-24 | ||||
| MDS825YH-24 | 20~85 % | |||
| MDS925H-24 | -20~+70 °C | 85 % max. | ||
| MDS1238H-24 | ||||
| MDS1751H-24 | ||||
| MDS1751FH-24 | ||||
| MDS420-12 | Min. 10 MΩ as a value measured by a 500 VDC megger | -20~+70 °C | 20~85 % | |
| MDS420-24 | ||||
| MDS515-12 | ||||
| MDS515-24 | ||||
| MDS625-24 | ||||
| MDS625Y-24 | ||||
| MDS825-24 | ||||
| MDS825Y-24 | ||||
| MDS925-24 | ||||
| MDS925Y-24 | ||||
| MDS1225Y-24 | ||||
| MDS1225Y2-24 | ||||
| MDS1238-24 | 85 % max. | |||
| MDS1451-24 | -10~+60 °C | |||
| MDS1751-24 | Min. 10 MΩ as a value measured by a 250 VDC megger | |||
| A Type | MDA420-24L | Min. 10 MΩ as a value measured by a 500 VDC megger | -20~+70 °C | 20~85 % |
| MDA515-24L | ||||
| MDA625-24L | ||||
| MDA625Y-24L | ||||
| MDA825-24L | ||||
| MDA925-24L | ||||
| MDA1225-24L | ||||
| MDA1238-24L | ||||
| MDA1451-24L | -10~+60 °C | 85 % max. | ||
| MDA625-24 | Min. 10 MΩ as a value measured by a 250 VDC megger | -10~+60 °C | 85 % max. | |
| MDA825-24 | ||||
| MDA925-24 | ||||
| MDA1225-24 | ||||
| MDA1238-24 | Min. 10 MΩ as a value measured by a 500 VDC megger | -20~+70 °C | ||
| MDA1451-24 | -10~+60 °C | |||
| MDA1751-24 | ||||
| E Type | MDE625-24L | Min. 10 MΩ as a value measured by a 500 VDC megger | -20~+70 °C | 85 % max. |
| MDE825Y-24L | 20~85 % | |||
| MDE925Y-24L | ||||
| MDE1225-24L | Min. 10 MΩ as a value measured by a 250 VDC megger | -10~+60 °C | 85 % max. | |
| MDE1238Y-24L | Min. 10 MΩ as a value measured by a 500 VDC megger | -20~+70 °C | 20~85 % | |
| MDE1451-24L2 | -10~+60 °C | 85 % max. | ||
| MDE1751-24L | -20~+70 °C | |||
| MDE1751F-24L | ||||
| V Type | MDV420-24S | Min. 10 MΩ as a value measured by a 500 VDC megger | -20~+70 °C | 20~85 % |
| MDV515-24S | ||||
| MDV625-24S | 85 % max. | |||
| MDV825-24S | ||||
| MDV825Y-24S | 20~85 % | |||
| MDV925-24S | 85 % max. | |||
| MDV1225-24S | 20~85 % | |||
| MDV1238-24S | 85 % max. | |||
| P Type | MDP825-24L | Min. 10 MΩ as a value measured by a 500 VDC megger | -20~+70 °C | 85 % max. |
| MDP925-24L | ||||
| MDP925Y-24L | 20~85 % | |||
| MDP1238-24L | 85 % max. |
Stall Alarm Specifications
If the cooling fans stop rotating while power is being supplied, an alarm signal is output.
Alarm Specifications
| Alarm Activation Speed | When locked |
|---|---|
| Output Mode | Open-collector output |
| Output Condition | Operation: L level (Internal transistor ON) When Locked: H level (Internal transistor OFF) |
| Maximum Rating | Maximum Applied Voltage: 27.6 VDC or less *30 VDC or less for MDA625Y-24L Maximum Inflow Current: 5 mA or less |
| Delay Function | None (To avoid alarm detection when the cooling fans start, an external delay circuit is required. The delay time should be 1 second min.) |
Alarm Output Circuit Connection Example
Standards
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with regulations and standards for each of our product series can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.
