αSTEP Battery-Free Built-In Absolute Encoder AZ Series

AZM69A0KH

Print Product Information All at once
AZM69A0KH

Motor
Product Classification Product Name List Price Shipping Date
Motor AZM69A0KH €372.00 Up to 20 pcs Estimated Ship 5weeks
• This product is a stepping motor only. A combination of driver circuit and connection cable is required for driving.
Notice: The shipping date refers to the time of dispatch from the warehouse in Düsseldorf/Germany. Shipments with 30 pieces or more will require air freight.

Included

  • Motor: None

Specifications

Characteristics

Speed - Torque Characteristics (Reference values)
Speed - Torque Characteristics (Reference values)

Speed - Torque Characteristics (Reference values)

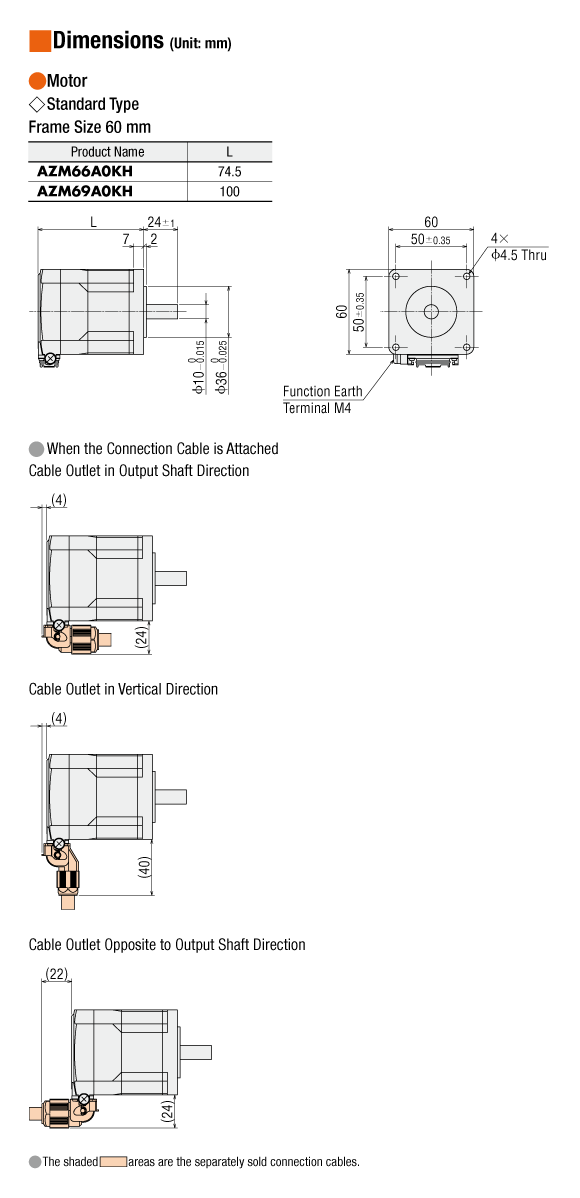

Dimensions

Motor
Motor

Motor

Data Download

Other Specifications

General Specifications

Motor Driver
Thermal Class 130(B)
[UL/CSA Standards acquisition is certified at 105 (A).]
 		 −
Insulation Resistance 100 MΩ or more when a 500 VDC megger is applied between the following places.

  • Between case and motor windings
  • Between case and electromagnetic brake windings*1
 100 MΩ or more when a 500 VDC megger is applied between the following places.

  • Between protective earth terminal and power supply terminal
Dielectric Strength

Sufficient to withstand the following for 1 minute:

AZM14, AZM15, AZM24, AZM26

  • Between case and motor windings　
    0.5 kVAC 50 Hz or 60 Hz

AZM46, AZM48, AZM66, AZM69

  • Between case and motor windings　
    1.0 kVAC 50 Hz or 60 Hz
  • Between case and electromagnetic brake windings*1　
    1.0 kVAC 50 Hz or 60 Hz
 −
Operating Environment
(when operating)		 Ambient Temperature 0~+40 °C (Non-freezing) 0~+50 °C (Non-freezing)
Ambient Humidity 85 % max. (Non-condensing)
Atmosphere Cable type: No corrosive gases or dust. No exposure to water, oil or other liquids.
Connector type: No corrosive gases or dust. No exposure to oil or other liquids.		 No corrosive gases or dust. No exposure to water, oil or other liquids.
Degree of Protection

Cable type (except for mounting surface and connector part):
AZM14, AZM15, AZM24, AZM26, AZM46 *2
, AZM48 *2 , AZM66 *2 , AZM69 *2: IP40
AZM46, AZM48, AZM66, AZM69: IP66

Connector type (when the connection cable is connected.
  Excluding the mounting surface and connector parts on the driver side of the connection cable): IP66


 IP10
Stop Position Accuracy AZM14, AZM15, AZM24, AZM26: ±5 arcmin (±0.083˚)
AZM46, AZM48: ±4 arcmin (±0.067˚)
AZM66, AZM69: ±3 arcmin (±0.05˚)
Shaft Runout 0.05 T.I.R. (mm)*3 −
Concentricity of Installation Pilot to the Shaft
 		 0.075 T.I.R. (mm)*3 −
Perpendicularity of Mounting Surface to the Shaft
 		 0.075 T.I.R. (mm)*3 −
Multi-Rotation Detection Range in Power OFF State

 AZM14, AZM15, AZM24, AZM26: ±450 rotations (900 rotations)
AZM46, AZM48, AZM66, AZM69: ±900 rotations (1800 rotations)
*1
(Only for types with electromagnetic brake)
*2
When the motor cable shape is horizontal pull-out
*3
T.I.R. (Total Indicator Reading): The total dial gauge reading when the measurement section is rotated once centered on the reference axis center.

Note

  • Disconnect the motor and driver when measuring insulation resistance, or conducting a dielectric strength test.
    Also, do not conduct these tests on the ABZO sensor part of the motor.
Disconnect the motor and driver when measuring insulation resistance, or conducting a dielectric strength test. Also, do not conduct these tests on the ABZO sensor part of the motor.

Permissible Radial Load and Permissible Axial Load

Unit: N
Type Motor
Frame Size
Dimension		 Motor
Product Name		 Gear Ratio Permissible Radial Load Permissible
Axial Load
Distance From Shaft End [mm]
0 5 10 15 20
Standard Type 20 mm AZM14
AZM15
AZME14		 - 12 15 - - - 3
28 mm AZM24
AZM26
AZME24		 25 34 52 - - 5
42 mm AZM46 35 44 58 85 - 15
AZM48 30 35 44 58 85
60 mm AZM66
AZM69		 90 100 130 180 270 30
85 mm AZM98
AZM911		 260 290 340 390 480 60
TS Geared Type 42 mm AZM46 3.6, 7.2, 10 20 30 40 50 - 15
20, 30 40 50 60 70 -
60 mm AZM66 3.6, 7.2, 10 120 135 150 165 180 40
20, 30 170 185 200 215 230
90 mm AZM98 3.6, 7.2, 10 300 325 350 375 400 150
20, 30 400 450 500 550 600
PS geared type 28 mm AZM24 7.2, 10 45 60 80 100 - 40
42 mm AZM46 5 70 80 95 120 - 100
7.2 80 90 110 140 -
10 85 100 120 150 -
25 120 140 170 210 -
36 130 160 190 240 -
50 150 170 210 260 -
60 mm AZM66 5 170 200 230 270 320 200
7.2 200 220 260 310 370
10 220 250 290 350 410
25 300 340 400 470 560
36 340 380 450 530 630
50 380 430 500 600 700
90 mm AZM98 5 380 420 470 540 630 600
7.2 430 470 530 610 710
10 480 530 590 680 790
25 650 720 810 920 1070
36 730 810 910 1040 1210
50 820 910 1020 1160 1350
PN Geared Type 28mm AZM24 10 45 60 80 100 - 40
42mm AZM46 5 80 95 120 160 - 100
7.2 90 110 130 180 -
10 100 120 150 200 -
60mm AZM66 5 240 260 280 300 330 200
7.2 270 290 310 340 370
10 300 320 350 380 410
90mm AZM98 5 370 390 410 430 460 600
7.2 410 440 460 490 520
10 460 490 520 550 580
HPG Geared Type 40 mm AZM46 5 150 170 190 230 270 430
9 180 200 230 270 320 510
60 mm AZM66 5 250 270 300 330 360 700
15 360 380 420 460 510 980
90 mm AZM98 5 600 630 670 710 750 1460
15 830 880 930 980 1050 2030
Harmonic
Geared Type		 30 mm AZM24 50, 100 100 135 175 250 - 140
42 mm AZM46 180 220 270 360 510 220
60 mm AZM66 320 370 440 550 720 450
90 mm AZM98 1090 1150 1230 1310 1410 1300
FC Geared Type 35 mm AZM24 7.2, 15, 25 80 120 180 230 - 80
42 mm AZM46 7.2, 10, 20, 30 180 200 220 250 - 100
60 mm AZM66 270 290 310 330 350 200
  • The product names are listed such that the product names are distinguishable.
  • PS,PN, HPG Geared Type: When either the radial load or the axial load is applied, the permissible value is set as a value that satisfies the life of 20,000 hours.

    Click here for information about gearhead lifetime

Radial Load and Axial Load

Radial Load and Axial Load
