Mounting Bracket Flange Drive Adapter
AGD580B
Flange Drive Adapter
| Product Classification | Product Name | List Price | Shipping Date |
|---|---|---|---|
| Flange Drive Adapter | AGD580B | €515.00 | Up to 5 pcs Estimated Ship 5weeks |
Notice: The shipping date refers to the time of dispatch from the warehouse in Düsseldorf/Germany. Shipments with 30 pieces or more will require air freight.
| Description | This product can reinforce the permissible radial load of parallel shaft gearheads. |
|---|
Specifications
Characteristics

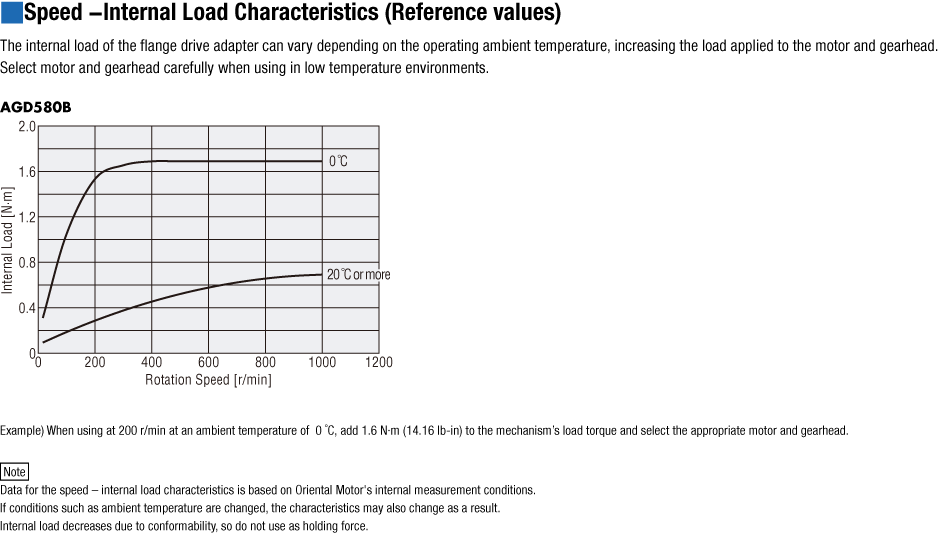

Speed-Internal Load Characteristics (Reference values)
Speed-Internal Load Characteristics (Reference values)

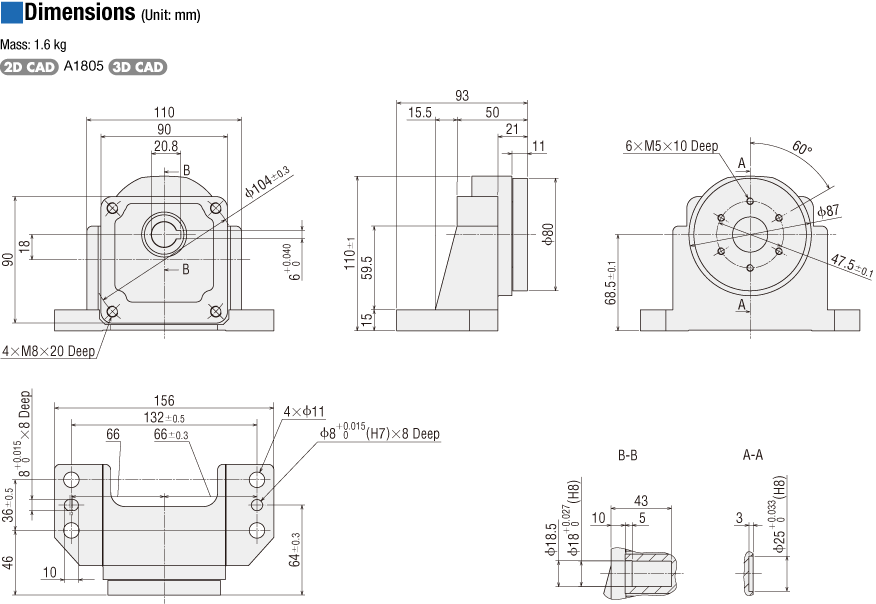

Dimensions
Data Download
Other Specifications
General Specifications
| Item | Specification |
|---|---|
| Operating Ambient Temperature | 0∼+50 °C (Non-freezing) |
| Degree of Protection | IP40 |
Standards
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.
