Induction Motors K Series
5IK40A-S
Motor
This product is currently no longer available for sale.
| Product Classification | Product Name | List Price | Shipping Date |
|---|---|---|---|
| Motor | 5IK40A-S | - | Discontinued Product (31.3.2024 discontinued) |
Included
- Motor, Operating Manual
Specifications
Data Download
Other Specifications
General Specifications
| Item | Specifications |
|---|---|
| Insulation Resistance | After rated operation at normal ambient temperature and humidity, the measurement between the coils and the case is 100 MΩ min. using a 500 VDC megger. |
| Dielectric Strength | After continuous rated operation at normal ambient temperature and humidity, no abnormalities were observed even with an application of 1.5 kV at 50 Hz or 60 Hz between the coils and the case for 1 minute. |
| Temperature Rise | After rated operation at normal ambient temperature and humidity, the measurement value of the motor surface temperature rise is 60 °C max. (45 °C max. for motors with fans) using the thermometer method. |
| Thermal Class | 120(E) |
| Operating Ambient Temperature | -10~+50 °C (Non-freezing) |
| Operating Ambient Humidity | 85 % max. (Non-condensing) |
Permissible Radial Load and Permissible Axial Load of Round Shaft Type
Permissible Radial Load
| Motor | Permissible Radial Load N | ||
|---|---|---|---|
| Frame Size □ (mm) | Output Shaft Diameter φ (mm) | From Shaft End 10 mm |
From Shaft End 20 mm |
| 42 | 5 | 40 | - |
| 60 | 6 | 50 | 110 |
| 70 | 6 | 40 | 60 |
| 80 | 8 | 90 | 140 |
| 90 | 10 | 140 | 200 |
| 12 | 240 | 270 | |
Permissible Axial Load
Avoid axial load as much as possible. If an axial load is unavoidable, keep it at half or less of the motor mass.

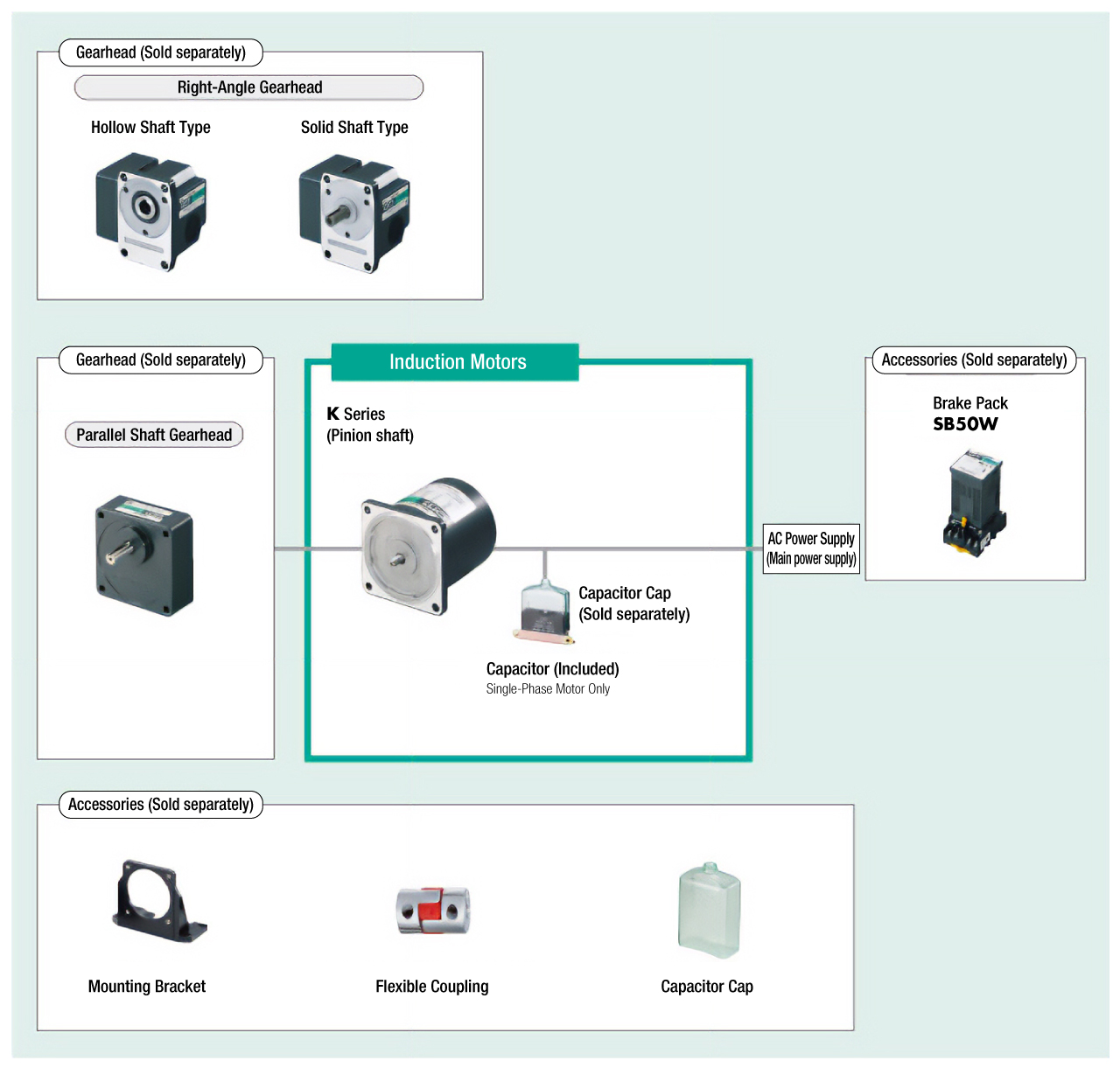

System Configuration
