Torque Motors K Series/World K Series
2TK3GN-AW2J+2GN60K
Motor
Gearhead
| Product Classification | Product Name | List Price | Shipping Date |
|---|---|---|---|
| Motor | 2TK3GN-AW2J | €108.00 | Up to 20 pcs Estimated Ship 5weeks |
| Gearhead | 2GN60K | €64.00 | Up to 5 pcs Estimated Ship 4weeks |
Notice: The shipping date refers to the time of dispatch from the warehouse in Düsseldorf/Germany. Shipments with 30 pieces or more will require air freight.
Included
- Motor: Capacitor, Capacitor Cap
Gearhead: Mounting Screws
Specifications
Characteristics

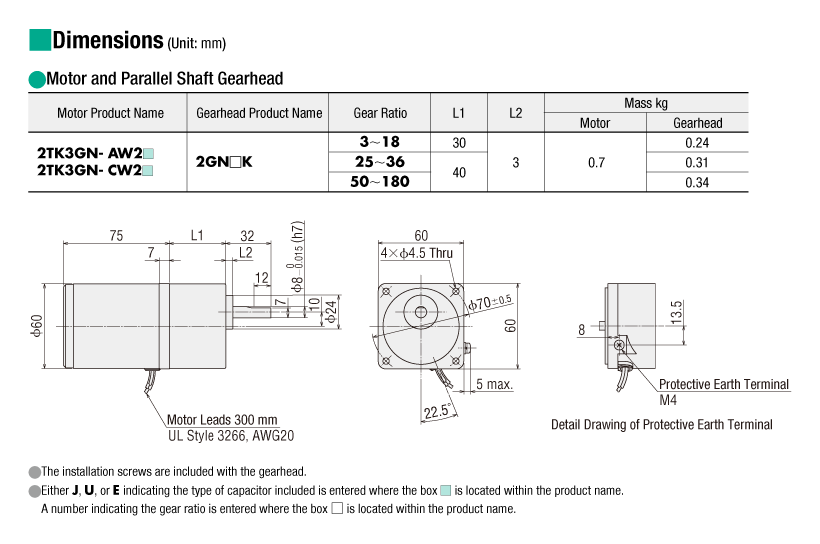

Dimensions
Data Download
Other Specifications
General Specifications
World K Series 3 W, 6 W, 10 W, 20 W
| Item | Specifications |
|---|---|
| Insulation Resistance | After rated operation at normal ambient temperature and humidity, the measurement between the coils and the case is 100 MΩ min. using a 500 VDC megger. |
| Dielectric Strength | No abnormality is observed even with an application of 1.5 kVAC at 50 Hz between the coils and the case for 1 minute after rated operation at normal ambient temperature and humidity. |
| Temperature Rise | A gearhead or equivalent heat sink* connected to the motor and the winding temperature rise is measured at 80 °C max. using the resistance change method after continuous rated operation under normal ambient temperature and humidity. |
| Thermal Class | 130 (B) |
| Overheat Protective Device | Built-in thermal protector (automatic return type) Open: 130 ±5 °C, Return: 85 ±20 °C |
| Operating Ambient Temperature | Single-phase 50 V, single-phase 100 V, single-phase 200 VAC: -10~+50 °C (non-freezing) Single-phase 60 V, single-phase 110 V, single-phase 115 VAC, single-phase 220 V, single-phase 230 V: -10~+40 °C (non-freezing) |
| Operating Ambient Humidity | 85 % max. (non-condensing) |
| Degree of Protection | IP20 |
- *Heat Sink Size (Material: Aluminum)
| Motor Type | Size (mm) | Thickness (mm) |
|---|---|---|
| 3 W type | 115 × 115 | 5 |
| 6 W type | 125 × 125 | |
| 10 W type | 135 × 135 | |
| 20 W type | 165 × 165 |
K Series 40 W
| Item | Specifications |
|---|---|
| Insulation Resistance | After rated operation at normal ambient temperature and humidity, the measurement between the coils and the case is 100 MΩ min. using a 500 VDC megger. |
| Dielectric Strength | No abnormality is observed even with an application of 1.5 kVAC at 50 Hz between the coils and the case for 1 minute after rated operation at normal ambient temperature and humidity. |
| Temperature Rise | After rated operation at normal ambient temperature and humidity, the measurement value of the motor surface temperature rise is 45 °C max. using the thermometer method. |
| Thermal Class | 120 (E) |
| Operating Ambient Temperature | -10~+50 °C (non-freezing) |
| Operating Ambient Humidity | 85 % max. (Non-condensing) |
Output Torque When Installing Gearheads
Torque motors have sloping characteristics, so they can be used at any rotation speed, from stop to maximum rotation speed. The permissible torque when a gearhead and decimal gearhead is installed should be calculated using the following formula based on the speed and torque to be used according to the speed - torque characteristics graph.
Gearhead output shaft speed NG = rotation speed of the motor x 1 / gear ratio of the gearhead
Gearhead output shaft torque TG = motor torque x gear ratio of the gearhead x gearhead transmission efficiency
Note that the gearhead output shaft torque does not exceed the maximum permissible torque of the gearhead.
| Gearhead Product Name |
Gearhead Gear Ratio |
Gearhead Conductive Efficiency |
|---|---|---|
| 2GN□K 3GN□K 4GN□K 5GN□K |
3~18 | 81 % |
| 25~36 | 73 % | |
| 50~180 | 66 % | |
| 5GU□KB 5GU□K |
3~9 | 81 % |
| 12.5~18 | 73 % | |
| 25~60 | 66 % | |
| 75~180 | 59 % | |
| 5GU□KBH | 50, 60 | 66 % |
| 75~180 | 59 % |
Permissible Radial Load and Permissible Axial Load of Gearhead
| Product Name | Gear Ratio | Maximum Permissible Torque N·m |
Permissible Radial Load N | Permissible Axial Load N |
|
|---|---|---|---|---|---|
| From Shaft End 10 mm |
From Shaft End 20 mm |
||||
| 0GN□K | 3~180 | 1.0 | 20 | - | 15 |
| 2GN□K | 3~18 | 3.0 | 50 | 80 | 30 |
| 25~180 | 120 | 180 | |||
| 3GN□K | 3~18 | 5.0 | 80 | 120 | 40 |
| 25~180 | 150 | 250 | |||
| 4GN□K | 3~18 | 8.0 | 100 | 150 | 50 |
| 25~180 | 200 | 300 | |||
| 5GN□K | 3~18 | 10 | 250 | 350 | 100 |
| 25~180 | 300 | 450 | |||
| 5GE□S 5GU□KB 5GU□K |
3~9 | 20 | 400 | 500 | 150 |
| 12.5~18 | 450 | 600 | |||
| 25~180 | 500 | 700 | |||
| 5GU□KBH | 50~180 | 30 | 400 | 600 | 150 |
Standards
Regulations and Standards Materials
Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)
Explanations of the Global Laws, Regulations and Standards can be found here.
Information about our compliance with safety standards for each of our product models can be found here.
Hazardous Substances
The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.
