Brushless Motor (PM Motor) 60 W, 120 W, 200 W, 400 W, 750 W Product Line

Motors and Gearheads

Output Shaft Type	Voltage Class [V]	Output Power [W]	Frame Size [mm]	Product Name		Gearhead Gear Ratio	Degree of Protection
				Motor	Gearhead

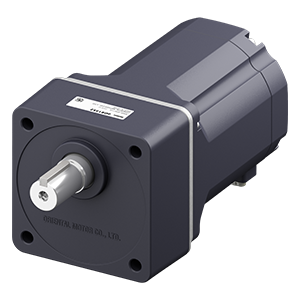

Parallel Shaft Gearhead	Three-phase 200	750	110	BL2M6750CHP-5S		5	IP66
				BL2M6750CHP-10S		10
				BL2M6750CHP-15S		15
				BL2M6750CHP-20S		20
				BL2M6750CHP-30S		30
				BL2M6750CHP-50S		50
		400		BLM6400SHP-GFV	GFV6G□S	5~50
		200		BLM6200SHP-GFV		5~200
		120	90	BLM5120HP-GFV	GFV5G□S GFV5G□SF
		60	80	BLM460SHP-GFV	GFV4G□S GFV4G□SF
Watertight, Dust-Resistant		400	110	BLM7400HW-GFV	GFV7G□SW	5~50	IP67
		200		BLM7200HW-GFV		5~100
Hollow Shaft Flat Gearhead	Three-phase 200	750	-	BL2M6750CHP-5FRS		5	IP66
				BL2M6750CHP-10FRS		10
				BL2M6750CHP-15FRS		15
				BL2M6750CHP-20FRS		20
				BL2M6750CHP-30FRS		30
				BL2M6750CHP-50FRS		50
		400		BLM6400SHP-GFV	GFS6G□FR	5~100	IP65
		200		BLM6200SHP-GFV		10~100
		120		BLM5120HP-GFV	GFS5G□FR	5~200
		60		BLM460SHP-GFV	GFS4G□FR
Right-angle Gearhead	Three-phase 200	400	-	BLM5400HPK	5XH□S	100, 200	IP66
					5YH□S	5~50
		200		BLM5200HPK	5XH□S	100, 200
					5YH□S	5~50
		120		BLM5120HPK	5H□S	10~200
Round Shaft Type	Three-phase 200	750	104	BL2M6750CHP-AS		-	IP66 (Excluding mounting surface)
		400	90	BLM5400HP-AS
		200		BLM5200HP-AS
		120		BLM5120HP-AS
		60	80	BLM260HP-AS
Round shaft type With key		750	104	BL2M6750CHP-KS

• A number indicating the gear ratio is specified where the box □ is located in the product name.

Connection Cable

Common for all output power.
