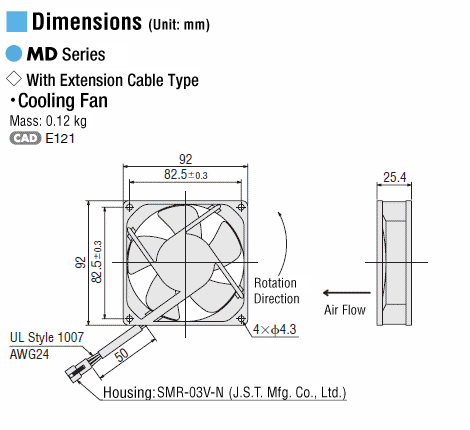

Dimensions (Body)

Dimensions (Body)

Extension Cable

Extension Cable

Panel Cut-Out

Panel Cut-Out

Data Download

Other Specifications

General Specifications

Item	Specifications
Insulation Resistance	10 MΩ or more when a 250 VDC megger is applied between the windings and the case after continuous operation under normal ambient temperature and humidity.   However, the measurement value for MDS625, MDS825, MDS925, MDS1238, MDS1451,MDS1751, MDA1238, MDA1451, MDA1751, MDE625,MDE825, MDE925, MDE1238, MDE1451, and MDE1751 using a 500 VDC megger are 10 MΩ min.       (Excluding MDS1751-24 (H))
Dielectric Strength	No abnormality is observed even with an application of 500 VAC at 50 Hz between the windings and the case for 1 minute after continuous operation, at normal ambient temperature and humidity.
Temperature Rise	After continuous operation at normal ambient temperature and humidity, when temperature becomes constant, the measurement value on the outer case using the thermometer method is 10 °C max.   However, the temperature for MDA1451 is 15°C max., and the temperature for MDS1751, MDA1751 is 5°C max.   (Excluding MDS1751H, MDS1751FH) For MDS625, MDS825, MDS925, MDS1238, MDS1751H, MDS1751FH and MDA1238, the measured winding temperature rise is 40°C max.
Operating Voltage Range	±15 % of rated voltage MDS410, MDS510, MDS625, MDS825, MDA1225: ±10 % (for each voltage)
Thermal Class	UL/CSA Standards: 105 (A), EN Standards: 120 (E)
Burning Protection	Built-in burnout prevention circuit
Operating Ambient Temperature	-10~+60 °C (-10~+70 °C for MDA1238)
Operating Ambient Humidity	85 % max. (Non-condensing)
Color	Frame	Black: MDS410, MDS510, MDS625, MD625, MDS825, MD825, MDS925, MD925, MDS1238, MDA625, MDA825, MDA925, MDA1238 Dark Gray: MDE1225, MDE1451 Unpainted (Aluminum): MDS1225, MD1225, MDS1451, MDS1751, MDA1225, MDA1451, MDA1751, MDE625, MDE825, MDE925, MDE1238, MDE1751
	Blade	Black
Materials	Frame	Aluminum Die Cast: MDS1225, MD1225, MDS1451, MDS1751, MDA1225, MDA1451, MDA1751, MDE625, MDE825, MDE925, MDE1225, MDE1238, MDE1451, MDE1751 Polycarbonate (Flammability Classification: V-0): MDS410, MDS510, MD625, MD825, MD925, MDA625, MDA825, MDA925 ABS/PBT Alloy (Flammability Classification: V-0) MDS625, MDS825, MDS925, MDS1238, MDA1238
	Blade	Polycarbonate (Flammability Classification: V-0): MD625, MD825, MD925, MDS1225, MD1225, MDS1451, MDS1751 (Excluding MDS1751H and MDS1751FH), MDA625, MDA825, MDA925, MDA1225, MDA1451, MDE1225, MDE1451 Polyphenylene oxide (Flammability Classification: V-0) MDS925 Polyphenylene oxide (Flammability classification: V-1): MDS625, MDS825, MDS1238, MDS1751H, MDS1751FH, MDA1238, MDE625, MDE825, MDE925, MDE1238, MDE1751 PBT (Flammability Classification: V-0): MDS410, MDS510

Standards

Regulations and Standards Materials

Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)

Explanations of the Global Laws, Regulations and Standards can be found here.

Information about our compliance with regulations and standards for each of our product series can be found here.

Hazardous Substances

The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).

For more information about compliance with regulations on chemical substances in Oriental Motor's Products, click here.

System Configuration

Related Products

Fan Kit Product (Axial Flow Fan)

Products	Features

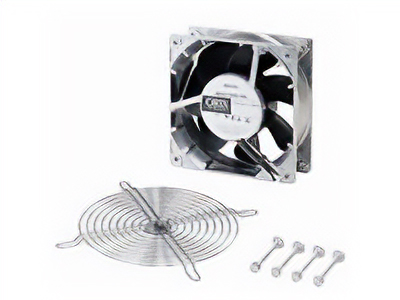

Fan Kit product	Features	In addition to accessories such as finger guards and cables, mounting screws are included in the set.   You can order everything you need in one go, so you can use it immediately after purchase.   Set Contents (Set contents vary depending on the product) Fan Finger guard or filter Mounting screw Cables Plug cord for power supply (EMU and MU Series only) Extension cable (only for extension cable type)
