Induction Motors

3IK15GN-AW2BJ

Print Product Information All at once
3IK15GN-AW2BJ

Motor
  This product is currently no longer available for sale.
Product Classification Product Name List Price Shipping Date
Motor 3IK15GN-AW2BJ - Discontinued Product
(1.4.2015 discontinued)

Included

  • Motor, Capacitor, Capacitor Cap, Operating Manual

Specifications

Data Download

Other Specifications

General Specifications

Item Specifications
Insulation Resistance After rated operation at normal ambient temperature and humidity, the measurement between the coils and the case is 100 MΩ min. using a 500 VDC megger.
Dielectric Strength After continuous rated operation at normal ambient temperature and humidity, no abnormalities were observed even with an application of 1.5 kV at 50 Hz or 60 Hz between the coils and the case for 1 minute.
Temperature Rise A gearhead or equivalent heat sink* connected to the motor and the winding temperature rise is measured at 80 °C max. using the resistance change method after continuous rated operation under normal ambient temperature and humidity. (Three-Phase type is 70 °C max.)
Thermal Class 130(B)
Overheat Protective Device The 6 W type is impedance protected
Other types: Built-in thermal protector (Automatic return type) Open: 130 ± 5 °C, Return: 82 ± 15 °C
Three-Phase 15 W Type Open: 130 ± 5 °C, Return: 90 ± 15 °C
Operating Ambient Temperature Single-phase 100 VAC, single-phase 200 VAC, three-phase 200 V: -10~+50 °C (Non-freezing)
Other voltages: -10~+40 °C (Non-freezing)
Operating Ambient Humidity 85 % max. (Non-condensing)
Degree of Protection IP65 (Excluding mounting surface of the round shaft type)
  • *Heat Sink Size (Material: Aluminum)
Motor Type (Output power) Size (mm)  Thickness (mm)
6 W Type 115 x 115 5
15 W Type 125 x 125
25 W Type 135 x 135
40 W Type 165 x 165

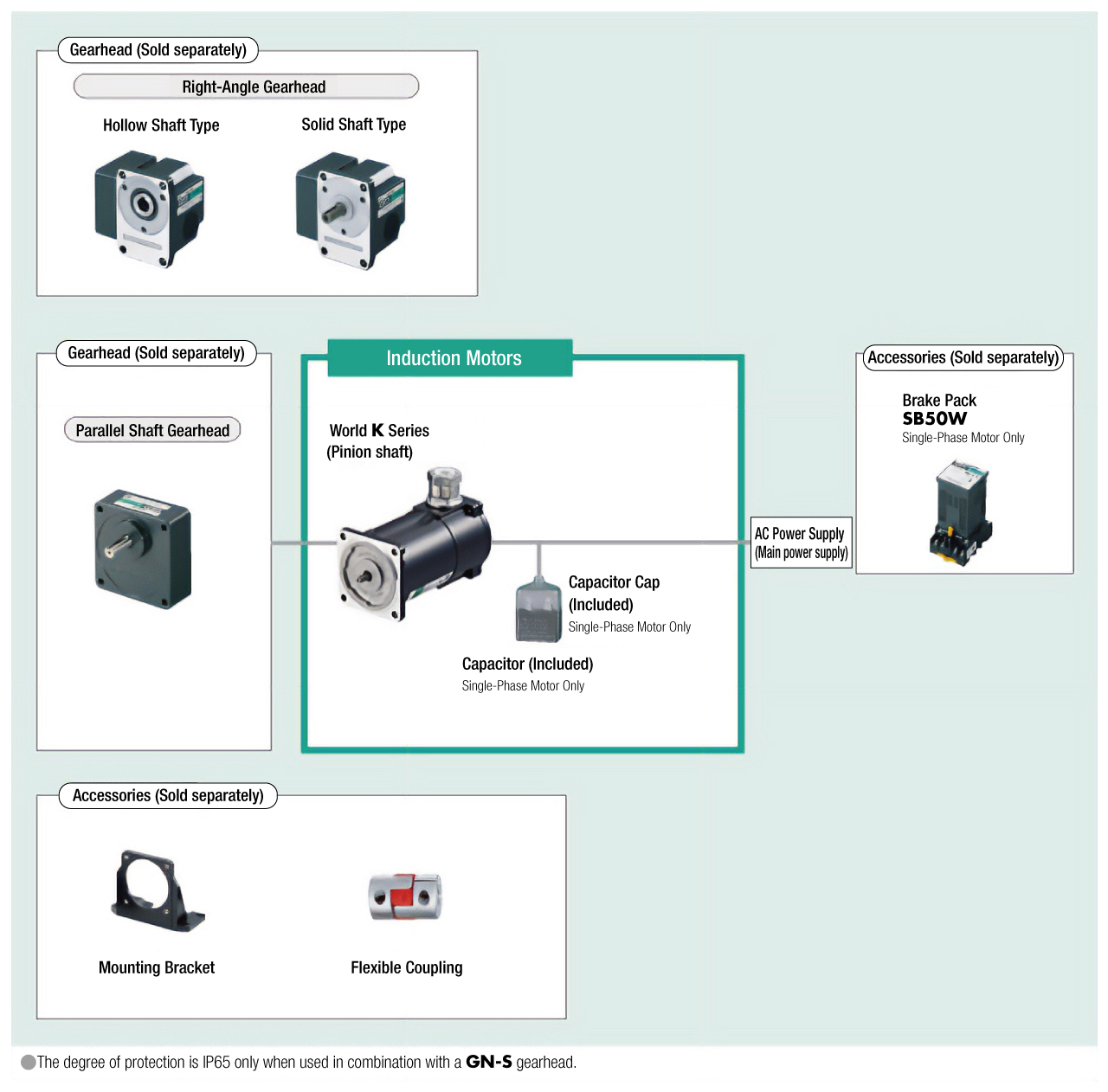

System Configuration

System Configuration

Related Products

Brake Pack

Products Features

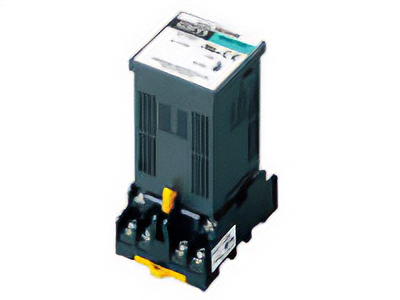

SB50W Series
SB50W Series
Features

This is a brake pack that enables instantaneous stopping, bidirectional rotation, and brake control of the motor, all in 1 unit.

This brake pack can increase the safety of equipment through the thermal protector open detection function.

In addition, alarm resetting by external signals is now possible, making it easier to use.

  • Supports Wide Voltage Range (100-230 V)
  • 48 mm × 48 mm DIN size
  • Conforms to Safety Standards
  • Compatible with 1 W~90 W Motors
  • Can Switch Sink/Source Logic
